I'm glad that you have purchased our wireless monitoring system. It will give you an
easy-to-use professional monitoring experience. Please read the product description
carefully before using it. If you have any questions you don't understand, please contact
our
Modulation Method:π/4-DQPSK
Frequency Range:610-786MHz,2x100/4x50CHs
Sampling Ratio:48KHz
Transmission Rate:204.8Kbps
Dynamic Range:＞90dB
Total Harmonic Distortion:＜0.1%
Delay Time of Audio Transmission:＜3ms
S/N Ratio:＞96dB
Frequency Response:30～20Khz
RX Sensitivity:＜-94dBm
Unique ID Address:YES
●The transmitter and antenna should kept in the relative position of accessibility
of the straight line.
●Don't put the receiver close to the radio wave emission source, with magnetic
objects or most digital devices(such as the CD player, computer, speaker, wifi etc ).
●Try to place the receiver in height of 1.5 meters from the ground and the position
of a distance of 1 meter away from the wall.
Some tips to improve the performance of the system

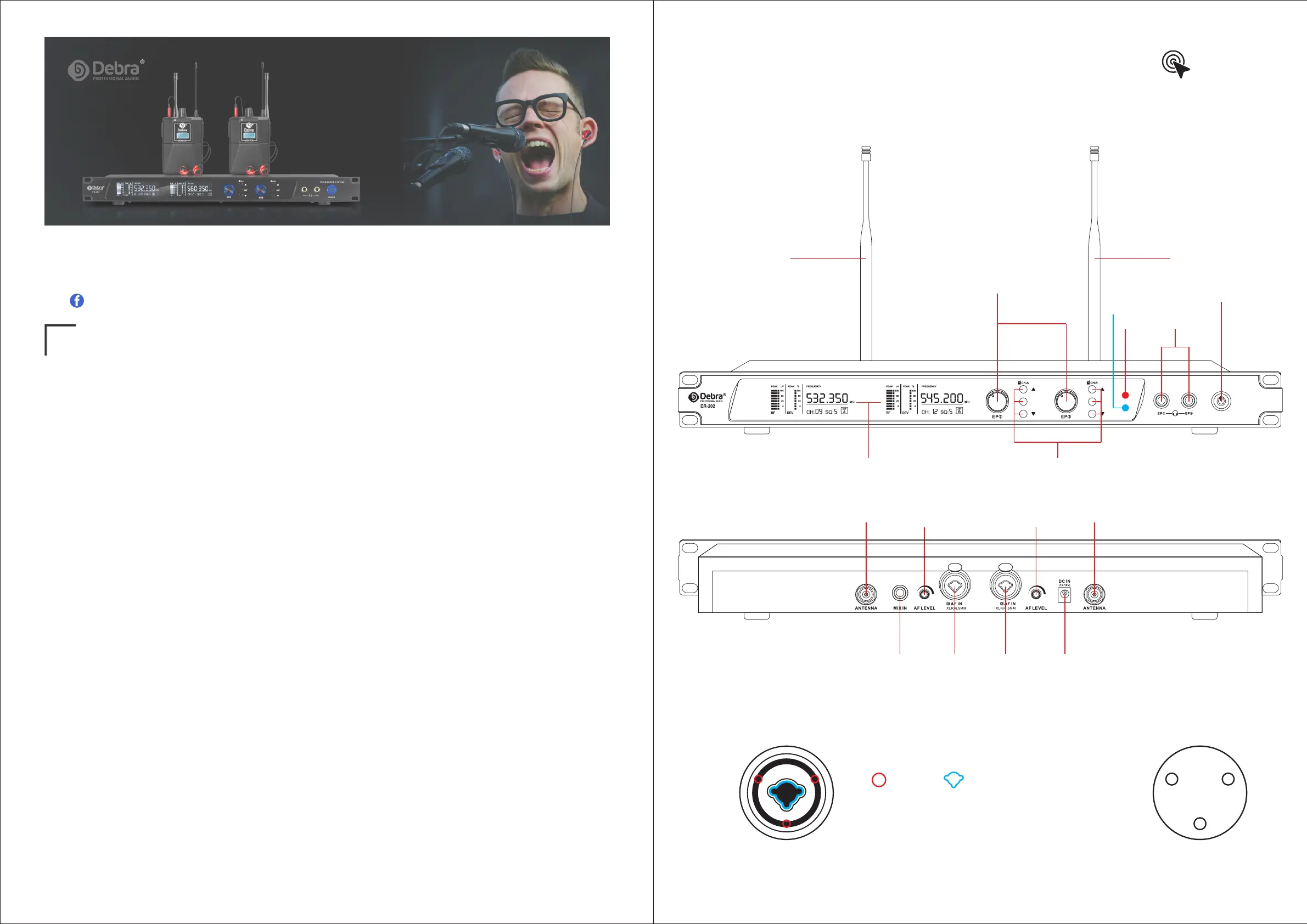

ER-202 Monitor system parameters
ER-202 monitor system parameters
TRANSMITTER FUNCTION
PRO MONITOR SYSTEM
POWER
SET SET
Signal
antenna
Signal
antenna
Headphone / output monitor
volume
Monitor
Headphone
Power
Information screen
Antenna interface
Mixed input
AF B
volume
AF A
volume
Antenna interface
Power connector
Channel A
AF input(MONO)
( XLR/6.5mm )
Channel A/B Set button
XLR/6.5mm interface input
Balanced use with XLR connectors
XLR 6.5mm
12
3
1=Ground/Shleld
2=Hot(+ve)
3=Cold(-ve)
output
12
3
For unbalanced use pin 1 and 3 have to be bridged
IR
Bluetooth
@DebraAudio
Channel B
AF input(MONO)
( XLR/6.5mm )
