DecaLED 95120929 - Technical Drawing: Layout & Physical Dimensions; Technical Drawing: 120 deg Aiming Location; Technical Drawing: System Connection Diagram

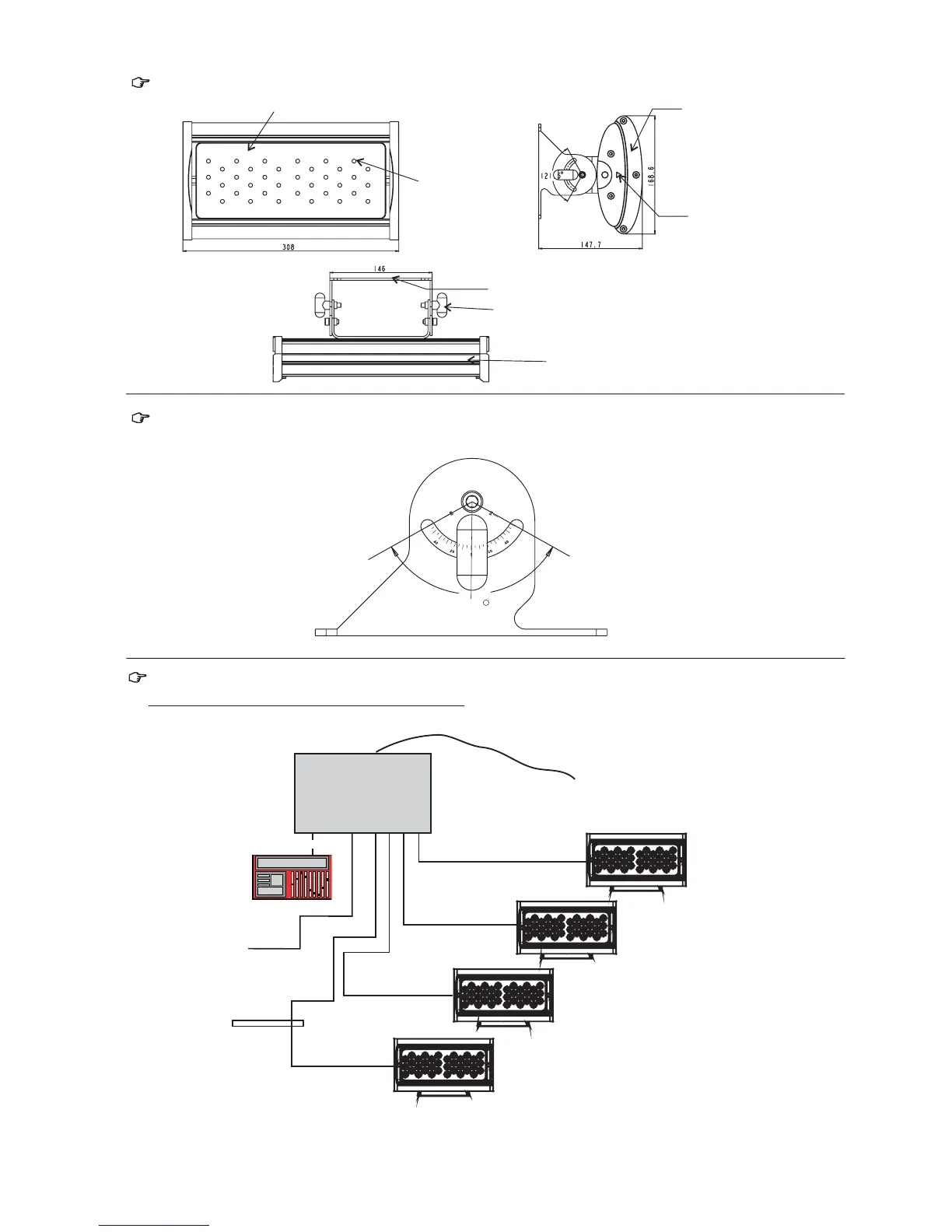

TECHNICAL DRAWING(Layout & Physical Dimensions)
-2-
Clear transparent tempered glass
36 in RGB SMD
LEDs with reflectors
Housing
IP68 air relief
T-liked bakelite screws(x2)
Fix stand
120
TECHNICAL DRAWING(120deg Aiming Location)
Ensure the aiming location which you wish to aim, then fasten T-liked bakelite screws.
TECHNICAL DRAWING(System Connection Diagram)
For connection Color Wash 36 RGB to USB-i505
USB-i505
DMX In 4 outputs
Power input 90-230VAC
Color Wash 36 RGB
Color Wash 36 RGB
Color Wash 36 RGB
Color Wash 36 RGB
DMX signal
DMX Thru
For Next USB-i505
IP Power/data Cable
(L=10m, 4-P NEUTRIK connector)
(Power supply, Program Tool
and controller in one.)
Side end with IP silicon washer
DMX Controller
