Decor Star PL-004-SS - Page 4

Decor Star PL-004-SS Rev. A4 1220154
Recommended

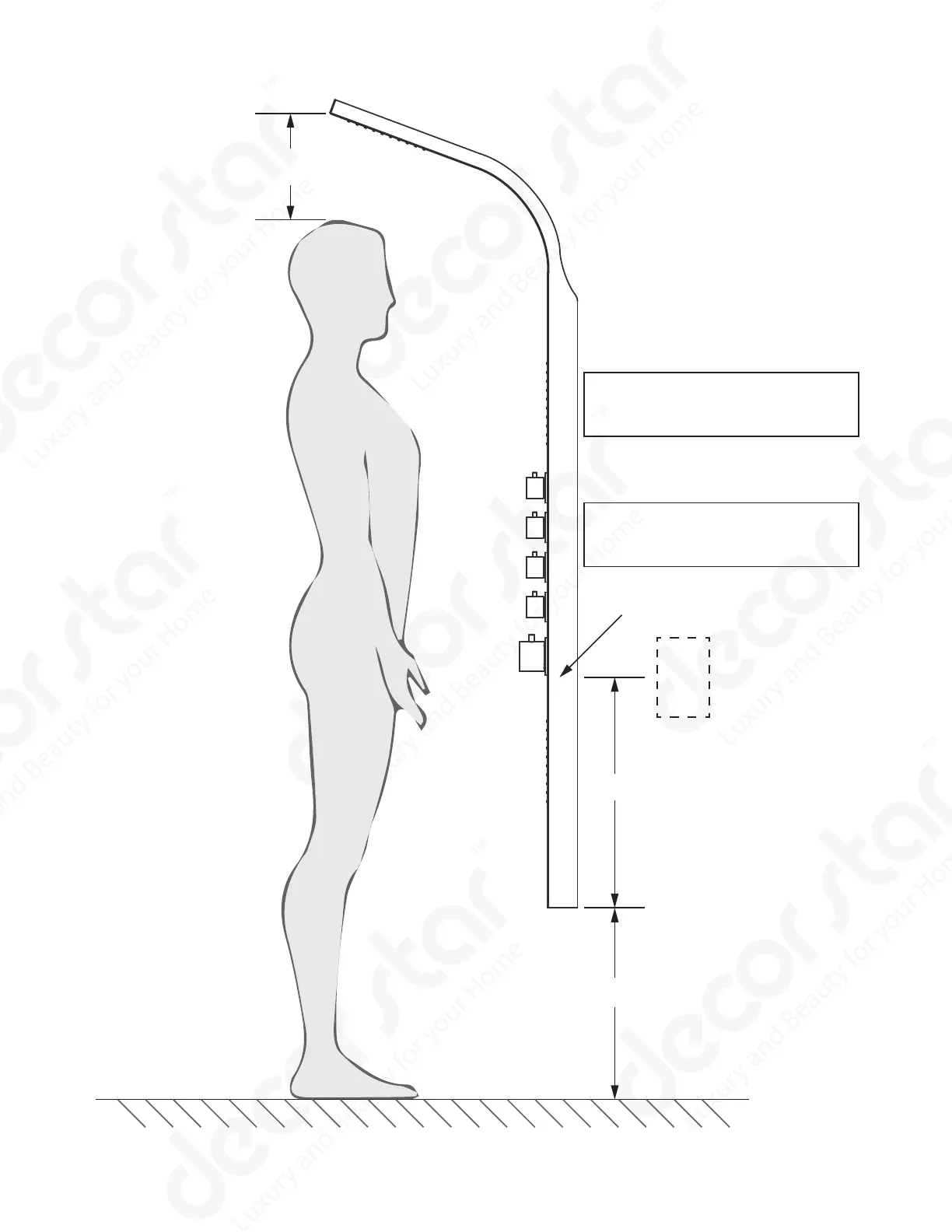

10” - 12”
Approximate shower inlet
valve location
laundry outlet
box
(This is the distance from
the oor to the bottom
edge of the shower panel)
Reference Model Height is 5’ 8”
Fig. A
(This is the distance from
the bottom edge of the
shower panel to the valve.
NOTE: This distance vary
by models, always take the
actual measurement from
the shower panel)
A
B
The installation height of the outlet box
is approximately the total distance of
measurement A and measurement B.
It is recommened to aim the top hori-
zontal body jets at the chest area of the
user for optimal showering experience.
