Dectron DRY-O-TRON DA2 007 User Manual

DA2 Series Dehumidifier Owners Manual
Installation Wiring Power
16 Dectron, Inc. November 2009
Data subject to change without notice.
DECTRON

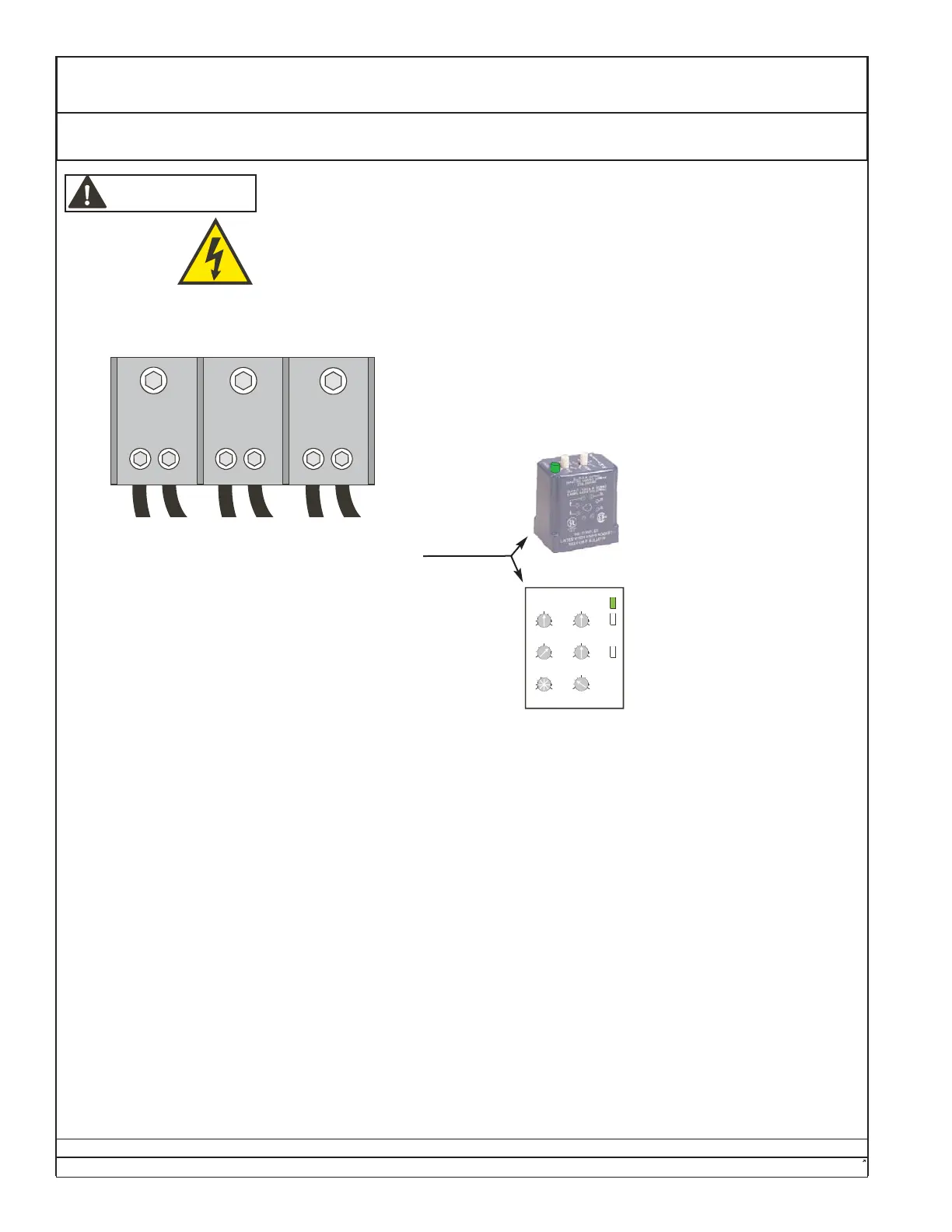

Connect input power here.
Use copper wire only. Torque all connectors
per NEC 110-14, UL486A, or relevant code.
3Φ shown. 1Φ
will have two
lugs only.
105
80
85 90
95
0.1
0.1
0.1
5
5
5
10
10
10
15
15
15
20
20
20
110
115
Vmax (%Ue)
Vmin (%Ue)
Ue (VAC)
Delay (sec)
ON
Delay (sec)
Delay (sec)
After power wiring is complete, and when safe to do so, turn on the
branch-circuit disconnect switch. In some cases the blower may start.
Some DRY-O-TRON® units may have voltage monitors
that prevent operation in the event the branch circuit has voltage that
is too high, too low, has lost a phase, or has reversed phase
sequence.
If the green LED is not lit, confirm that the applied voltage is within
±10% of the nameplate voltage (NEMA MG-1), that all three phases
are present, and that the phase sequence is correct. (See
Diagnostics.) Correct as necessary.
Conduit seals are required.
See previous notes.
Type 1 monitor
Type 2 monitor
WARNING
Risk of electric shock. Can cause injury or death.
The unit controller does not disconnect electrical energy from the unit, even in the
OFF condition. Use only approved devices (e.g. locking safety switch), to disconnect,
lockout, and tagout all sources of electrical energy before working inside the unit
cabinet. Follow all applicable safety regulations.
