DeDietrich AWHP MIT-IN iSystem Installation And Service Manual

Settings to be made for this type of installation
Parameters Access Settings to be made See chapter
INSTALLATION
Installer level
#SYSTEM menu
EXTENDED
¼ "Displaying the parameters in extended
mode", page 78
O.PUMP A
(1)
Installer level
#SYSTEM menu
FAILURE
¼ "Setting the parameters specific to the
installation", page 78
If second tank connected:
S.AUX:
(1)
Installer level
#SYSTEM menu
DHW
(1) The parameter is only displayed if INSTALLATION parameter is set to EXTENDED

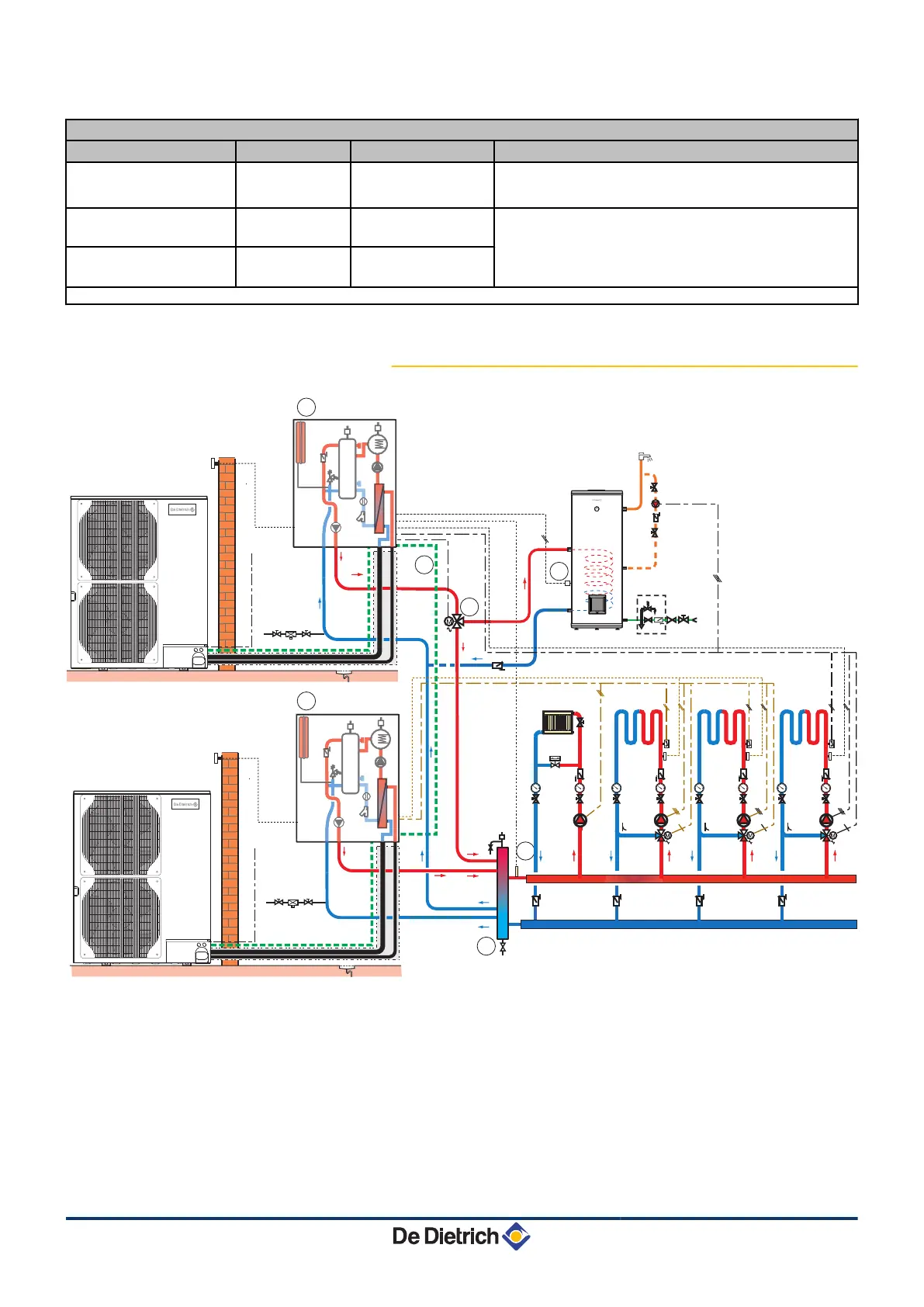

4.11.17. Connection in cascade
BUS
AWHP
230V ou 400V 50Hz
MIT-IN/E
EH 114
BUS
BUS
AWHP
230V ou 400V 50Hz
MIT-IN/E
EH 114
M002704-B
1
2
3
4
5
6
7
°C °C °C °C
4
°C °C °C °C
A
MIT master module
Z
MIT slave module
E
Reversal valve (Package HK23)
R
Connect the DHW sensor (Package AD212).
T
BUS cable
Y
Low loss header
4. Installation AWHP MIT-IN iSystem
61
24/09/2012 - 300027606-001-01
