INSTALLATION INSTRUCTIONS
t4BGFUZUIFSNPTUBU
Thanks to a sensor placed on the CH ow line, this thermostat interrupts the ow of gas to the burner if the water in
the primary circuit overheats. In these conditions, the boiler is blocked and only after the fault has been eliminated can
it be ignited again by pressing (
), for at least 2 seconds.
It is forbidden to disenable this safety device
t'MBNFJPOJ[BUJPOEFUFDUPS
The ame sensing electrode, located on the right-hand side of the burner, guarantees safety of operation in case of gas
failure or incomplete ignition of the burner.
In these conditions, the boiler is blocked after 3 ignition attempts.
Press (
), for at least 2 seconds to re-establish normal operating conditions.
t)ZESBVMJDQSFTTVSFTXJUDI
This device allows the main burner to be ignited only if system pressure is higher than 0.5 bars.
t1VNQPWFSSVOGPSIFBUJOHDJSDVJU
The electronically-controlled pump post-circulation function lasts 180 seconds and is enabled, in the heating mode, if
the ambient thermostat causes the burner to go out.
t1VNQPWFSSVOGPS%)8DJSDVJU
The electronically-controlled pump post-circulation function lasts 30 seconds and is enabled, in the DHW mode, if the
probe causes the burner to go out.
t'SPTUQSPUFDUJPOEFWJDF$)BOE%)8TZTUFNT
The electronic boiler management system includes a “frost protection” function for the heating system which, when
delivery temperature falls below 5°C, operates the burner until a delivery temperature of 30°C is reached.
This function is enabled when the boiler is switched on, the gas supply is open and the system is correctly pressurised.
t8BUFSOPUDJSDVMBUJOHJOQSJNBSZDJSDVJUQVNQQSPCBCMZCMPDLFE
If there is insufcient or no water circulating in the primary circuit, the boiler blocks and the error code E25 is shown on
the display (section 10).
t"OUJCMPDLQVNQGVODUJPO
If no heat demand is received for 24 consecutive hours, in the heating mode, the pump will automatically start and
operate for 10 seconds. This function is operative when the boiler is powered.
t5ISFFXBZWBMWFBOUJCMPDLBHFGVODUJPO
If no heat demand is received for a period of 24 hours, the three-way valve performs a complete switching cycle. This
function is operative when the boiler is powered.
t)ZESBVMJDTBGFUZWBMWFIFBUJOHDJSDVJU
This device is set to 3 bar and is used for the heating circuit
.
Connect the safety valve to a drain trap. Do not use it to drain the heating circuit.
N.B.: domestic hot water is guaranteed even if the NTC sensor develops a fault. In this case, temperature is controlled
by the delivery sensor.

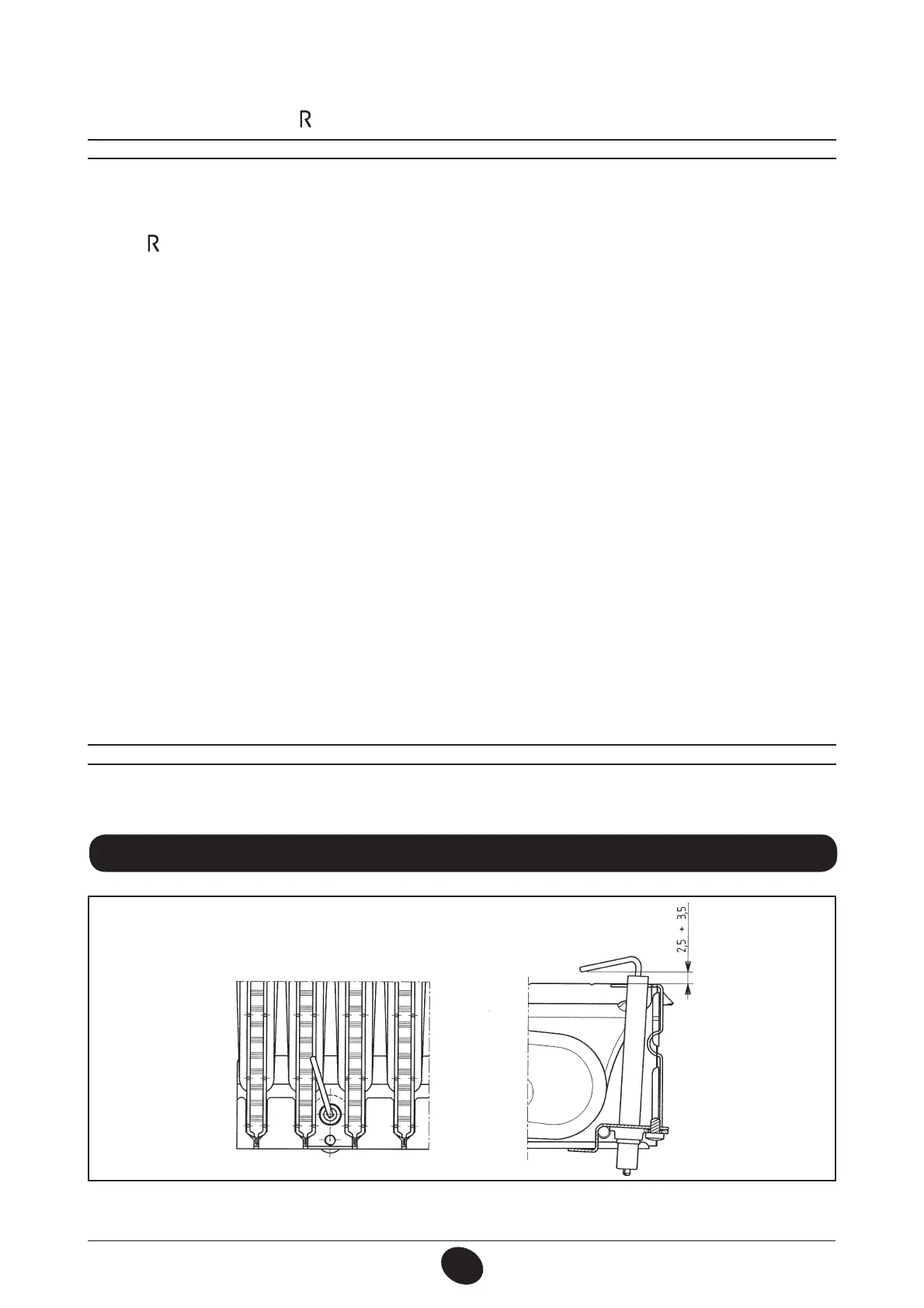

23. POSITIONING THE IGNITION AND FLAME-SENSING ELECTRODE
Figure 13
9912070100
