DEEP SEA ELECTRONICS DSEGenset DSE3110 User Manual

Description Of Controls
057-086 ISSUE: 6
Page 32 of 56

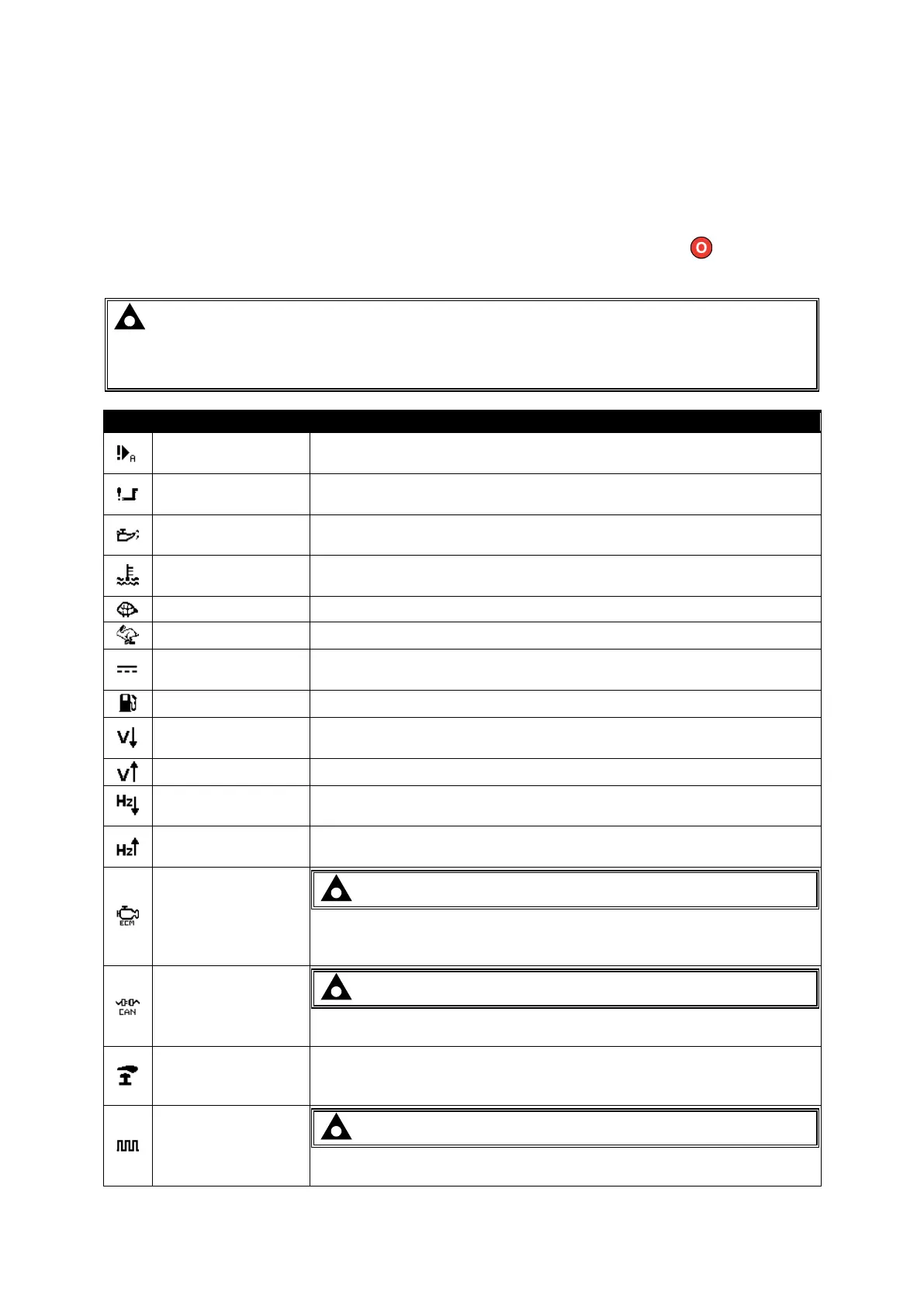

4.2.2.3.3 SHUTDOWN ALARM ICONS
Shutdown alarms are latching and immediately stop the Generator. On initiation of the shutdown
condition the module de-energises the Close Gen output to remove the load from the generator. Once
this has occurred, the module shuts the generator set down immediately to prevent further damage.
The alarm must be accepted and cleared, and the fault removed to reset the module.
Shutdowns are latching alarms and to remove the fault, press the Stop/Reset Mode button on the
module.
NOTE: The alarm condition must be rectified before a resetting. If the alarm condition
remains, it is not be possible to reset the unit (The exception to this is the Low Oil Pressure
alarm and similar Active From Safety On alarms, as the oil pressure is low with the engine at
rest).
Icon
Fault
Description
User Configured
Digital Inputs
The module detects that a digital input (indicated by the letter)
configured has active, generating a fault.
Fail To Start
The engine has failed to start after the configured number of start
attempts
Low Oil Pressure
The module detects that the engine oil pressure is low is after the
Safety On Timer has expired.
High Coolant
Temperature
The module detects that the engine coolant temperature is high after
the Safety On Timer has expired.
Under Speed
The engine speed has fallen below the under speed alarm setting
Over Speed
The engine speed has risen above the over speed alarm setting
Charge Failure
The auxiliary charge alternator voltage is low as measured from the
W/L terminal.
Low Fuel Level
The module detects that the engine oil pressure is low.
Generator Under
Voltage
The generator output voltage has fallen below the under voltage alarm
setting after the Safety On Timer has expired.
Generator Voltage
The generator voltage has risen above the over voltage alarm setting.
Generator Under
Frequency
The generator output frequency has fallen below the under frequency
alarm setting after the Safety On Timer has expired.
Generator Over
Frequency
The generator output frequency has risen above the over frequency
alarm setting.
CAN ECU Fault
NOTE: Only applicable to 3110-xxx-02 CAN variant.
The engine ECU has detected an alarm – CHECK ENGINE LIGHT
Contact Engine Manufacturer for support.
CAN Data Fail
NOTE: Only applicable to 3110-xxx-02 CAN variant.
The module is does not detect data on the engine CAN data link.
Emergency Stop
The emergency stop button has been depressed. This failsafe (normally
closed to emergency stop) input and immediately stops the set when
the signal be removed.
Magnetic Pick-Up
Failure
NOTE: Only applicable to 3110-xxx-01 MPU/Hz variant.
Pulses are no longer being detected from the magnetic pickup probe
