Hangzhou Minghong Electronic Technology Co., Ltd. www.deepelec.com Version 1.0
3

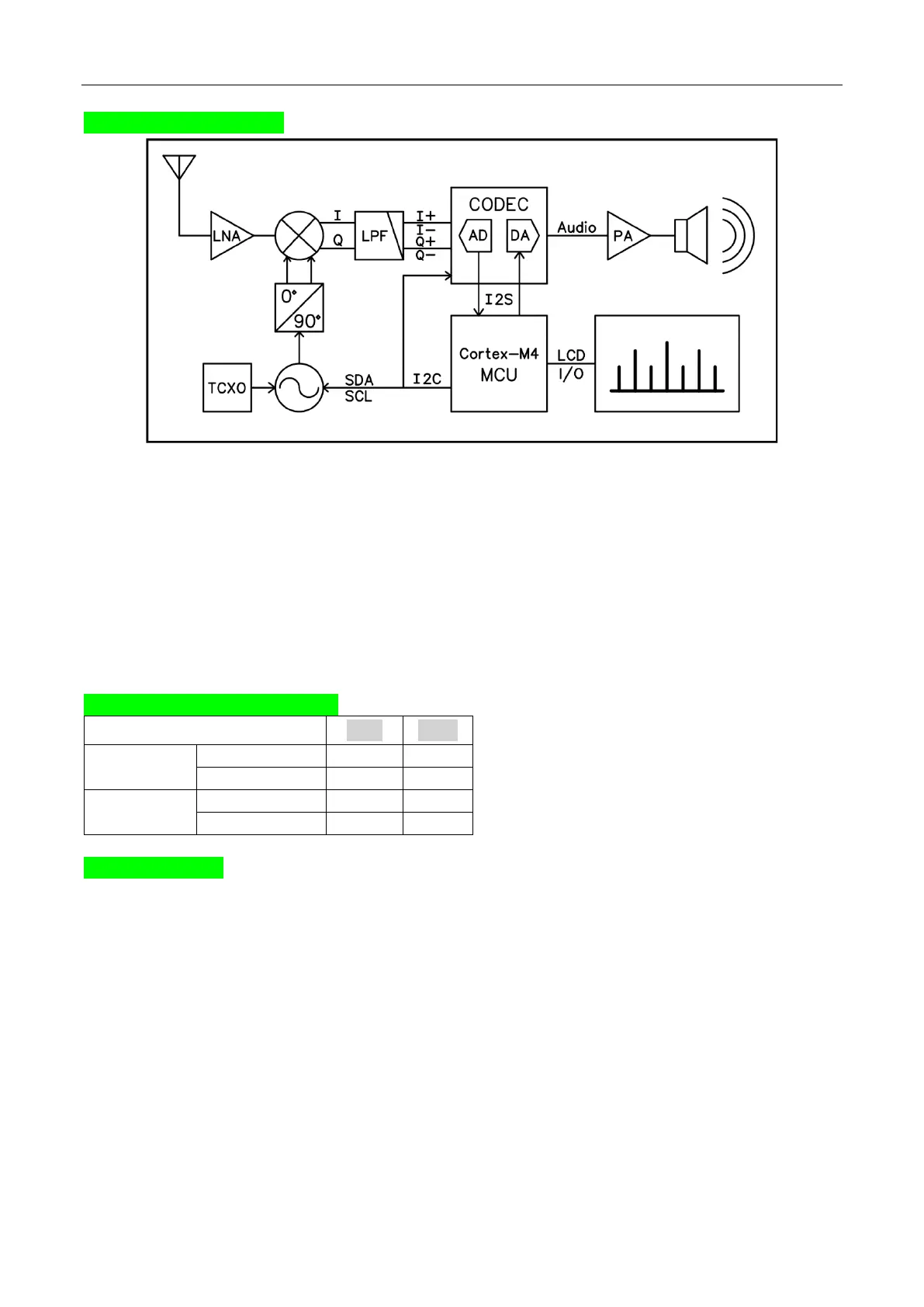

Receiver Block Diagram
This product realizes frequency mixing based on the Tayloe Quadrature Product Detector
method. The clock generator Si5351 generates two quadrature square wave signals with
variable frequency as excitation, and realizes an ultra-low noise ZIF zero-IF receiver. The
IQ signal obtained after mixing is output to the CODEC and collected by the MCU, and
the DSP algorithm in the MCU completes the demodulation and display of the signal.
Tayloe mixer references:
Ultra Low Noise, High Performance, Zero IF Quadrature Product Detector and Preamplifier
http://www.norcalqrp.org/files/Tayloe_mixer_x3a.pdf
State of charge and discharge
Status
RED
Blue
charging
Blink
OFF
full
ON
OFF
discharging
OFF
ON
low battery
OFF
Blink
Attention points
1. The machine adopts SDR architecture. If there is a strong broadcasting station near
you, the phenomenon of mirror radio may appear.
2. The input impedance of the antenna interface is 50Ω. For the medium wave radio, it
is recommended to connect a dedicated medium wave loop antenna for better listening
effect.
3. Please pay attention to the volume setting of the earphone (EAR) before using the
earphone to listen to avoid discomfort caused by excessive volume.
