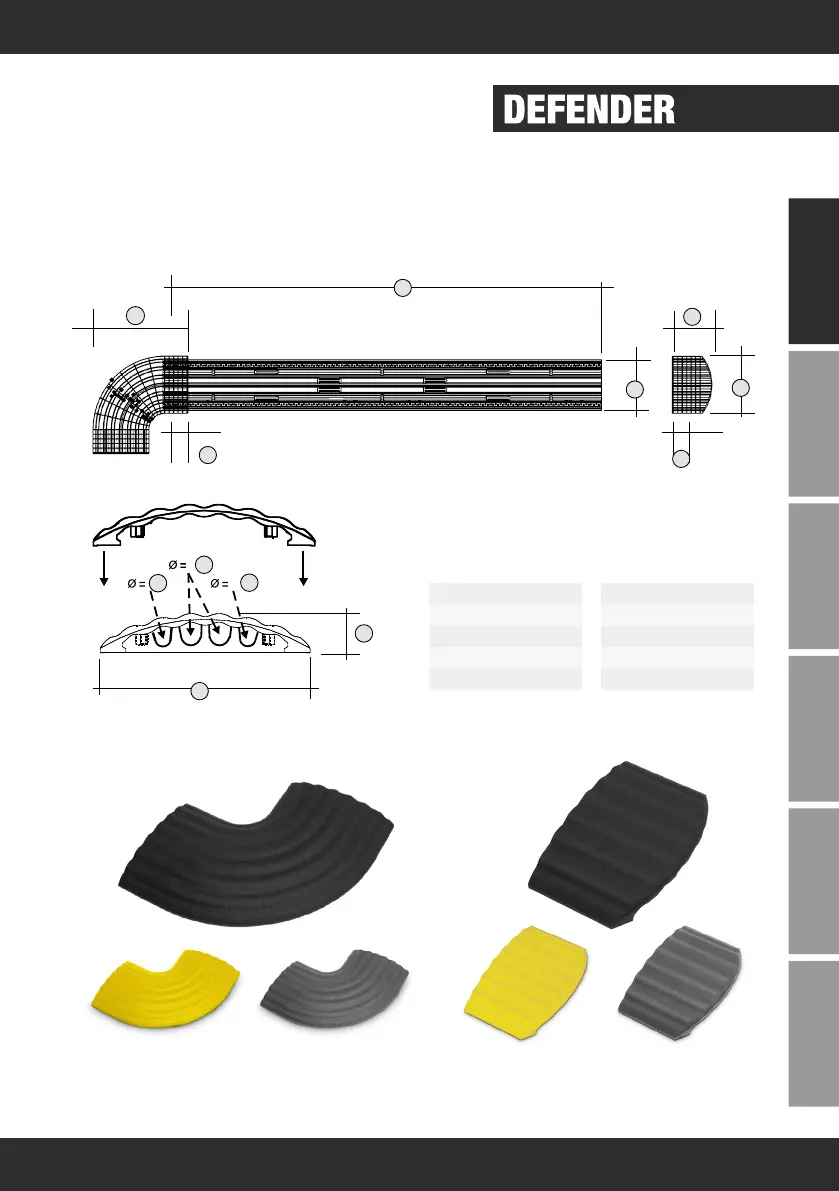

ENGINEERING DRAWING
Accessories:
DEFENDER
®
OFFICE C (90° curve ) DEFENDER
®
OFFICE ER (End ramp)
85161, 85161YEL, 85161GREY 85168, 85168YEL, 85168GREY
D
J
H
I
H
(overlapping part)
A 125 mm / 5.0" F 210 mm / 8.3"
B 90 mm / 3.5" G 50 mm / 2.0"
C 50 mm / 2.0" H 10 mm / 0.4"
D 125 mm / 4.9" I 12 mm / 0.5"
E 865 mm / 34.1" J 20 mm / 0.8"
