- Place unit at eye level if possible to simplify operation and maintenance.
- Place steam humidifier absolutely horizontal (longitudinally and laterally) to
ensure correct function.

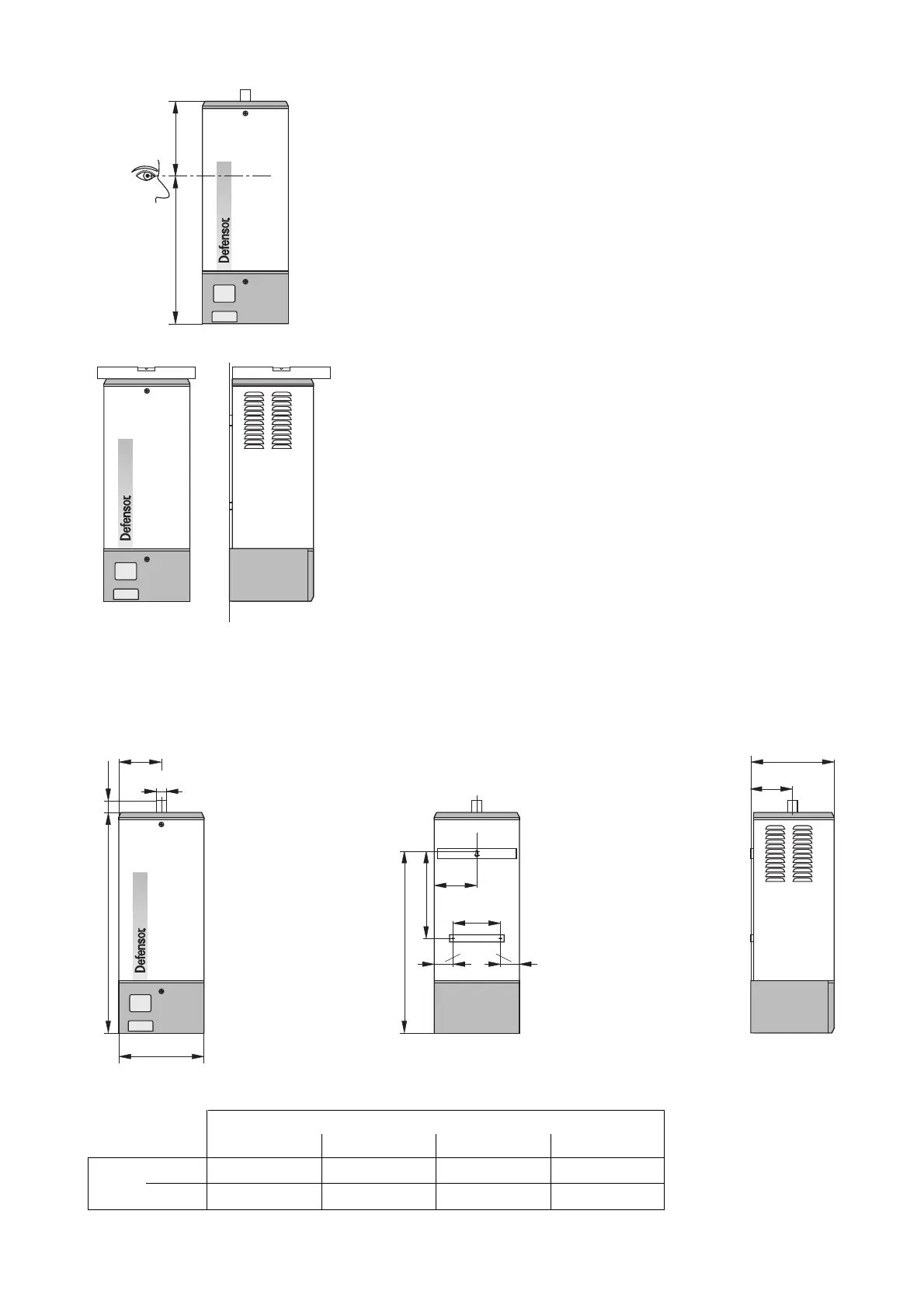

Dimensional drawings/Weights
Defensor Mk4
ST 5-../IT 5-.. ST 10-../IT 10-.. ST 20-../IT 20-.. ST 30-../IT 30-..
Weight operation 33 kg 34 kg 45 kg 46 kg
net 24 kg 25 kg 28 kg 29 kg
Mk4
53.5
354
G 1
1
/
4
"
79.5
179.5
200
179.5
929
764
359
365
181
