Page 9

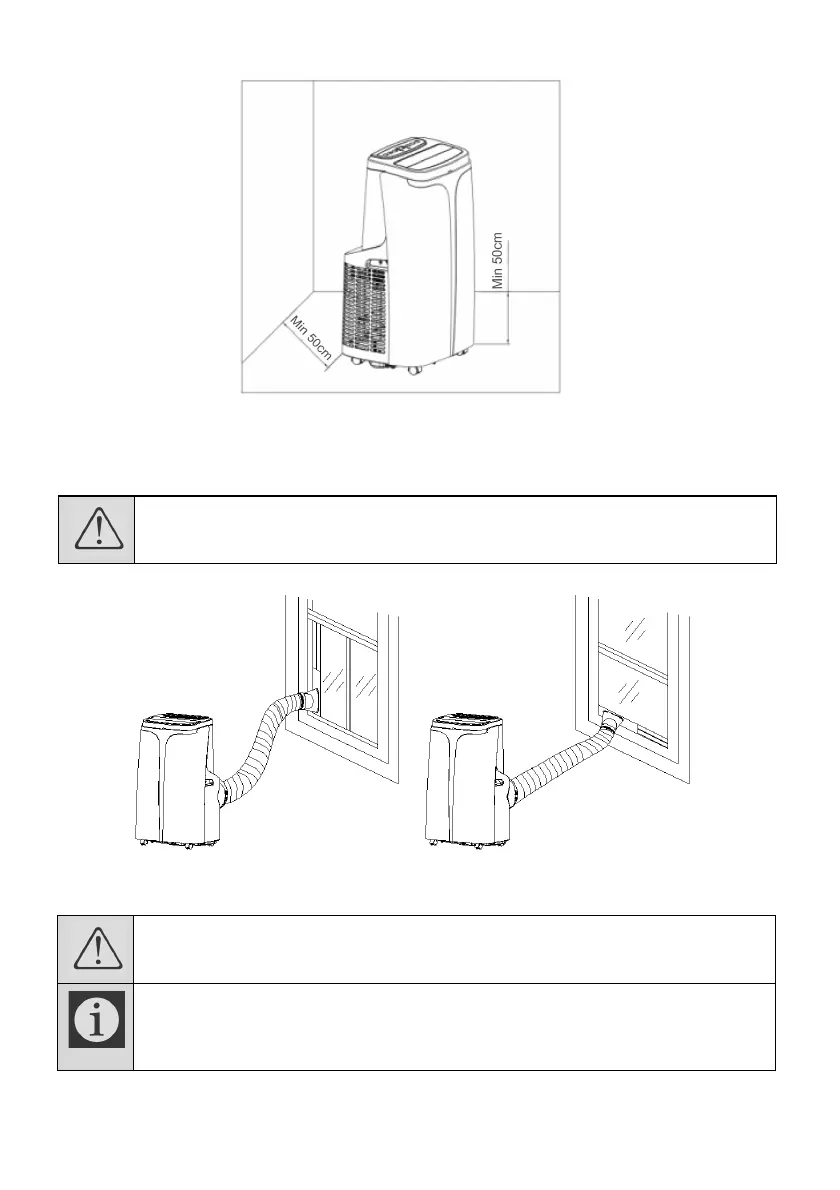

2) Elongate the exhaust pipe and snap the flat end of the exhaust pipe joints into the hole of
the window sealing plate assembly (as shown in Fig.5 and Fig.6).
Warning: The length of the exhaust pipe has been calculated to suit the
appliance, do not replace or lengthen the exhaust pipe as this will adversely affect
the performance of the appliance.
Note: The maximum length of the exhaust pipe is 280 -1500mm. Keep the length
as short as possible. Keep the exhaust pipe as level as possible so as not to restrict
air flow. Do not use extension tubes or replace with different pipes, this may lead to
a malfunction. Exhaust pipe must not be blocked; this may cause overheating.
Fig.4
Note: The flat end of the exhaust pipe joints must be snapped into place. The
pipe must not be distorted or have substantial bends (greater than 45 °). Keep the
ventilation of the exhaust pipe open without any obstructions.
Fig.5
Fig.6
