Removal of the lower and upper burner and installation of the injector to the
gas oven
Removal of the upper burner:
With the help of a screw driver, remove the screw as shown in gure 8.
As shown in gure 8.1, remove the injector in the bearing with a socket
wrench. In order to re-place the burner, apply the removal process
reversely.
Removal of the lower burner:
The lower burner door has been xed with two screws. As shown in
gure 9, remove it with the help of a screw driver. As shown in gure 9.1,
remove the injector in the bearing with a socket wrench. In order to
re-place the burner, apply the removal process reversely.

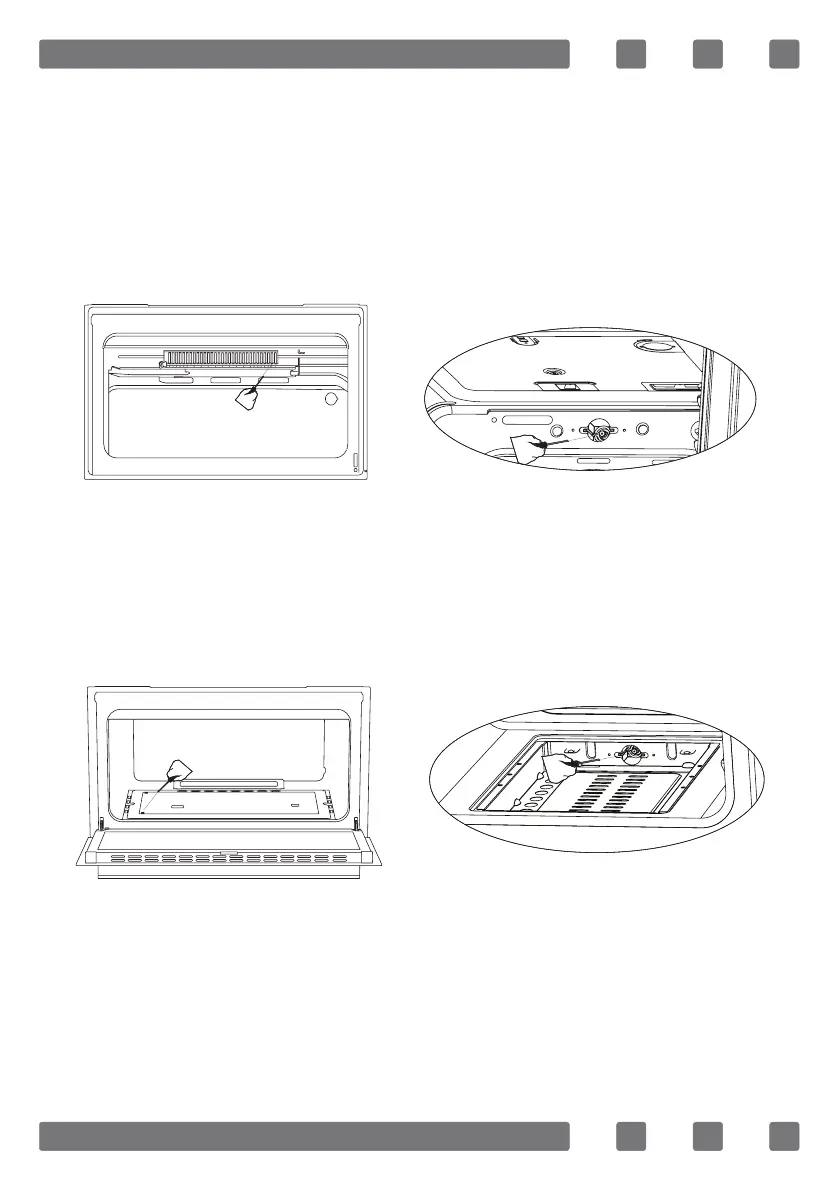

Figure 8 Figure 8.1
Figure 9 Figure 9.1
