Installation

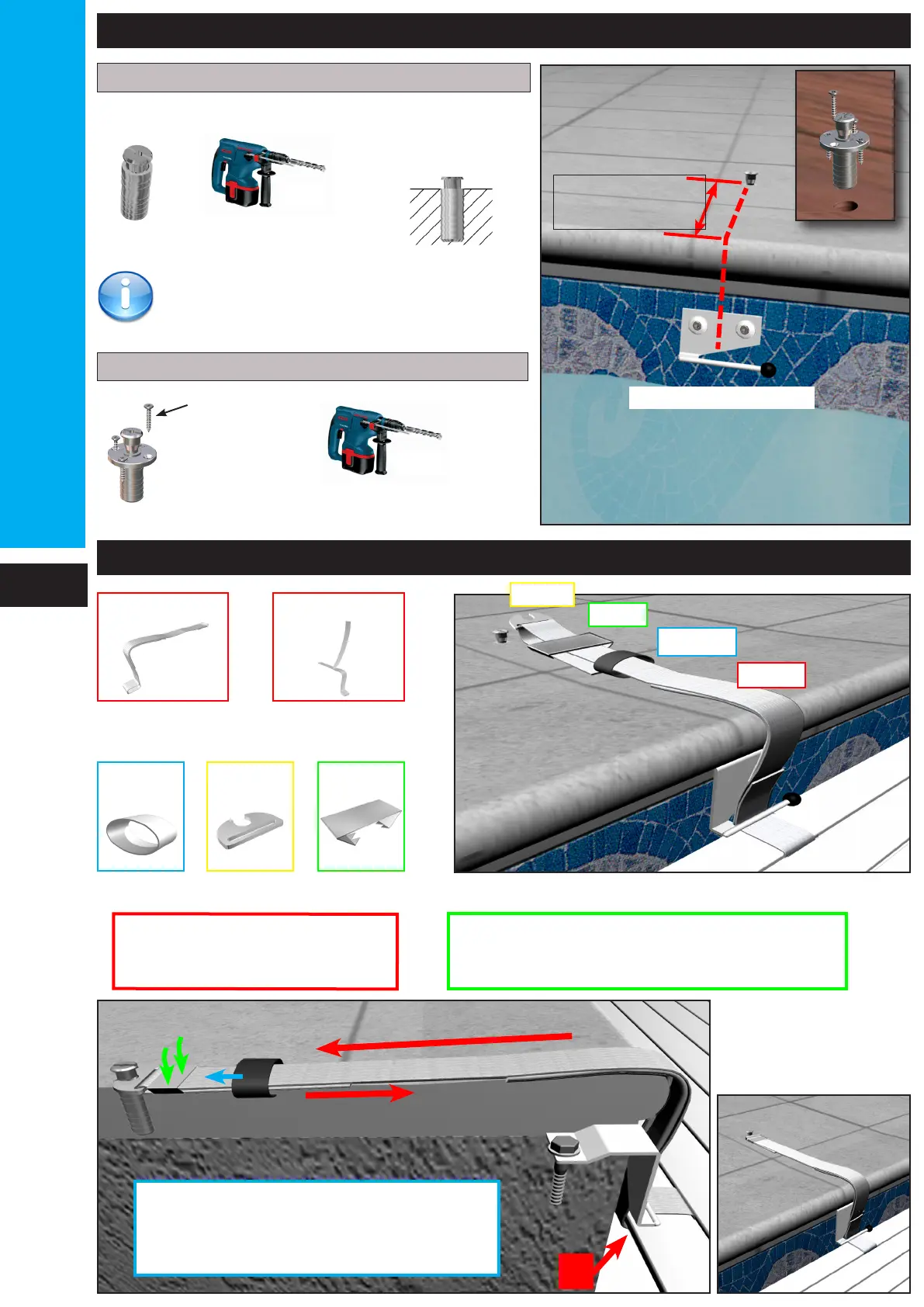

INSTALLATION OF THE STRAP-HOLDER ANCHOR EYEBOLT
INSTALLATION OF THE STRAPLOCK STRAP
Centre of the straplock
between
Eyebolt for concrete beach
Eyebolt for wooden beach
The head of the
eyebolt must be
higher than the
beach surface
Do not force the eyebolt into a drill
hole of a smaller diameter than this
Cruciform
Protective
sheath
single strap
strap
sheath
staple
loop
Stretch the strap
the cover must touch the
underside of the straplock
Place the strap in position after
the loop and crimp
the 2 strap thicknesses pass inside the stable
double strap
stapleloop
or
Place the sheath around the staple
and heat using a liester
thermostat 5 to 6
Be careful not to burn the strap
Ø20
Ø20
côté mât
