Delano SONAR 2 - Active Electronics Wiring Diagram with Passive Highcut; Passive Highcut Treble Control; Treble Pot Ordering Information; General Component Wiring

blue XYZ grey XYZ green XYZ blue XYZ grey XYZ green XYZ blue XYZ grey XYZ green XYZ

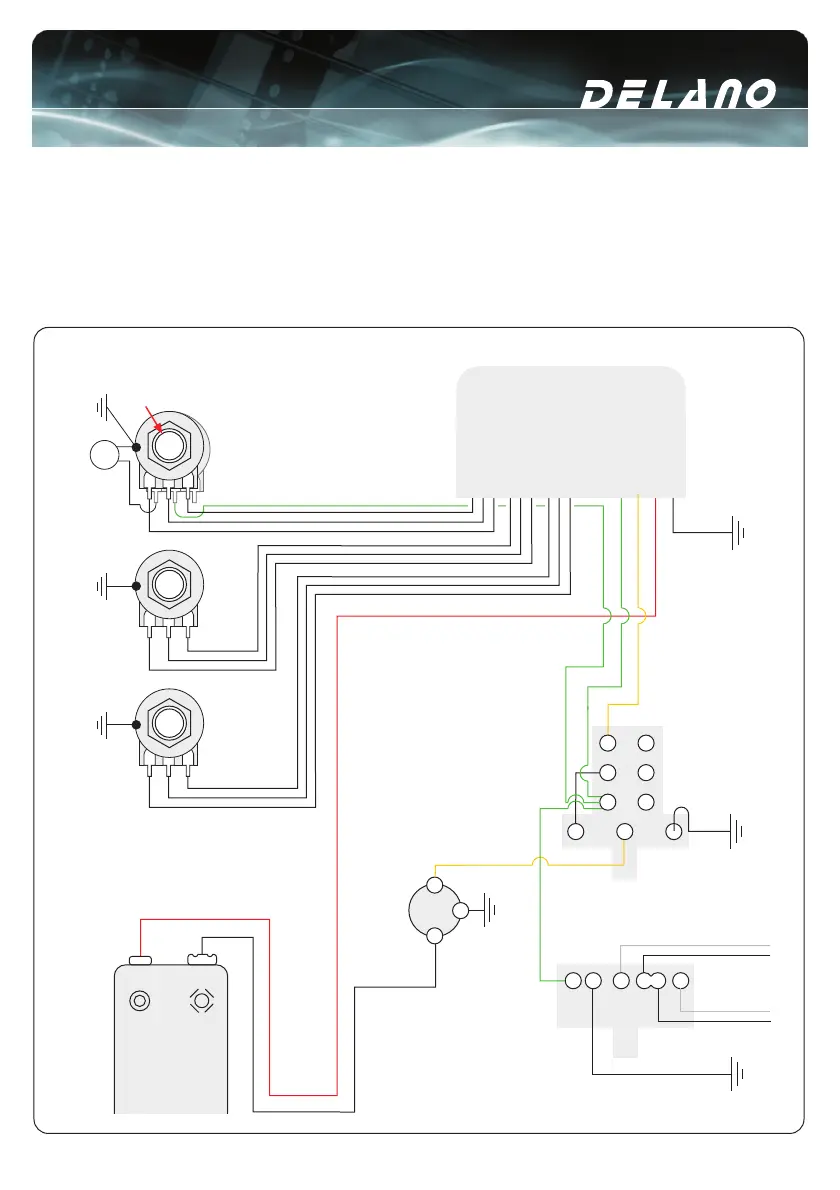

active electronics
wiring diagram
for SONAR 2 & 3 band EQ
with passive highcut
Assembly through qualified personnel only · No liability for incorrect assembly · Technical changes reserved · © DELANO
®
Pickup Systems 2008
active electronics ( EQ)
in (green) out (yellow) +9V (red) gnd (black)
jack
gnd
out
treble mid bass
treble
(with 250 K highcut
on upper level)
gnd
mid
gnd
bass
gnd
out
gnd
gnd
bridge pickup
volume
(push-pull)
balance
hot
—+
battery
(9V)
hot
hot
neck pickup
We highly recommend a proper grounding and shielding of the
electronics compartment with DELANO MagnaShield copper foil.
Art.-No.: DE-7A (1 m) self-adhesive
Art.-No.: DE-7 (roll) self-adhesive
gnd
33nF
PLEASE NOTE:
This active/passive treble pot comes NOT standard
with the SONAR preamp. Please order separate!
Art.-No.: DE-9F treble cut
!
pickup systems
www.delano-pickups.com
