Delixi JLXK1 Series User Manual

About JLXK1 Series Travel Switch

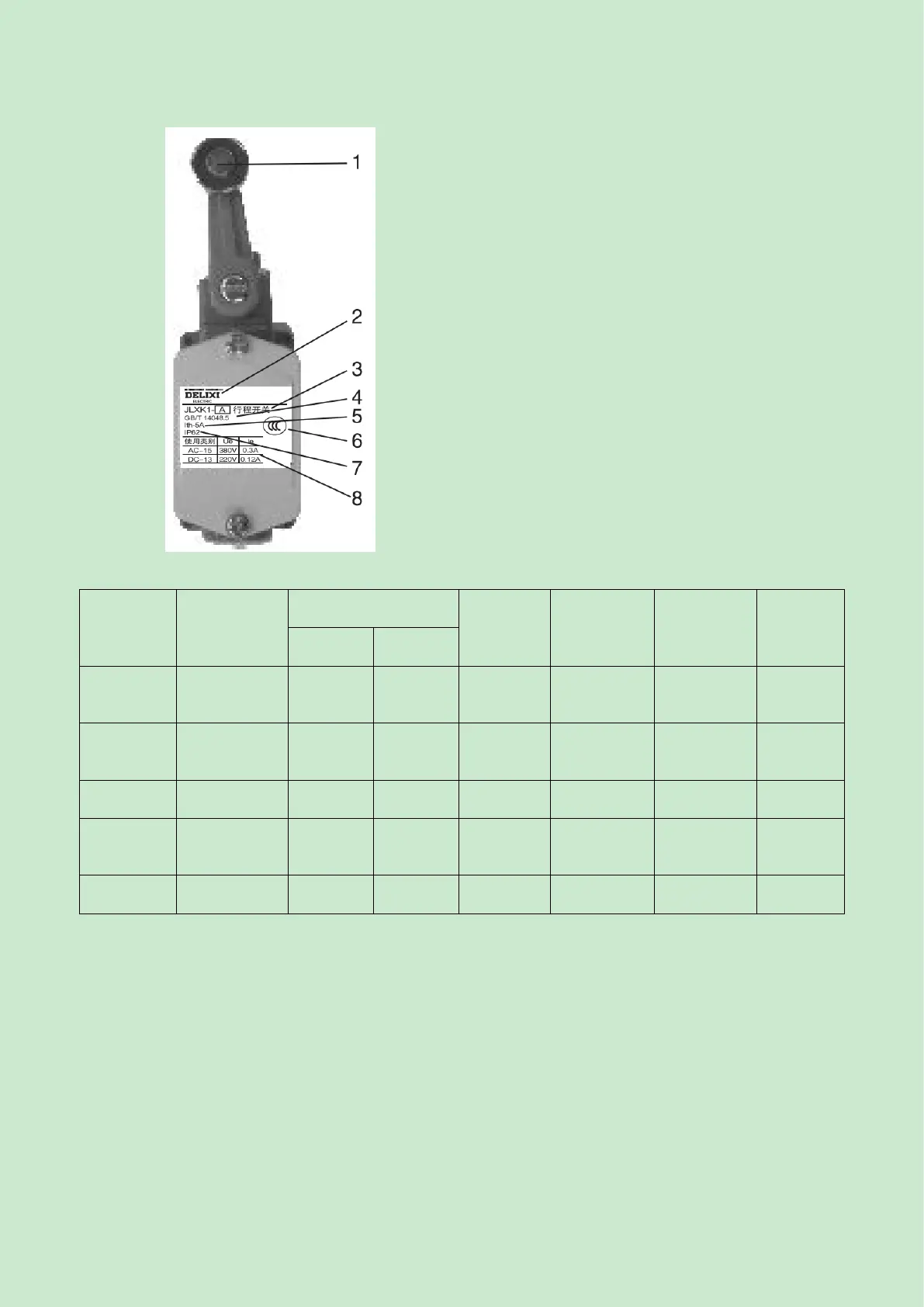

●Panel introduction
Legends:
1. Hit head structure form
2. Company logo
3. Product model
4. Standard: GB/T 14048.5
5. Resistive current in free air Ith=5A
6. Certification mark
7. Protection grade: IP62 (after installation)
8. Technical parameters
AC – 15 Ue: 380V Ie:0.3A
DC – 13 Ue:220V Ie:0.12A
Table 1: Hit head structure type and basic data
Model
Hit head
structure form
Number of contact
pairs
Action
stroke or
angle
Overstroke
or angle
Contact
conversion
time s
Action
force
N
Normally
open
Normally
closed
JLXK1-111
Single-wheel
type, auto
reset
1
1
15°-20°
≥30°
≤0.04
≤10
JLXK1-211
Dual-wheel
type, non-auto
reset
1
1
≤45°
≥30°
≤0.04
≤15
JLXK1-311
Push rod type,
auto reset
1
1
1-3mm
≥2mm
≤0.04
≤20
JLXK1-411
Roller push
rod type, auto
reset
1
1
1-3mm
≥2mm
≤0.04
≤20
JLXK1-511
Universal,
auto reset
1
1
20±5mm
-
≤0.04
≤15

Delixi JLXK1 Series Specifications

General

Brand	Delixi
Model	JLXK1 Series
Category	Switch
Language	English
