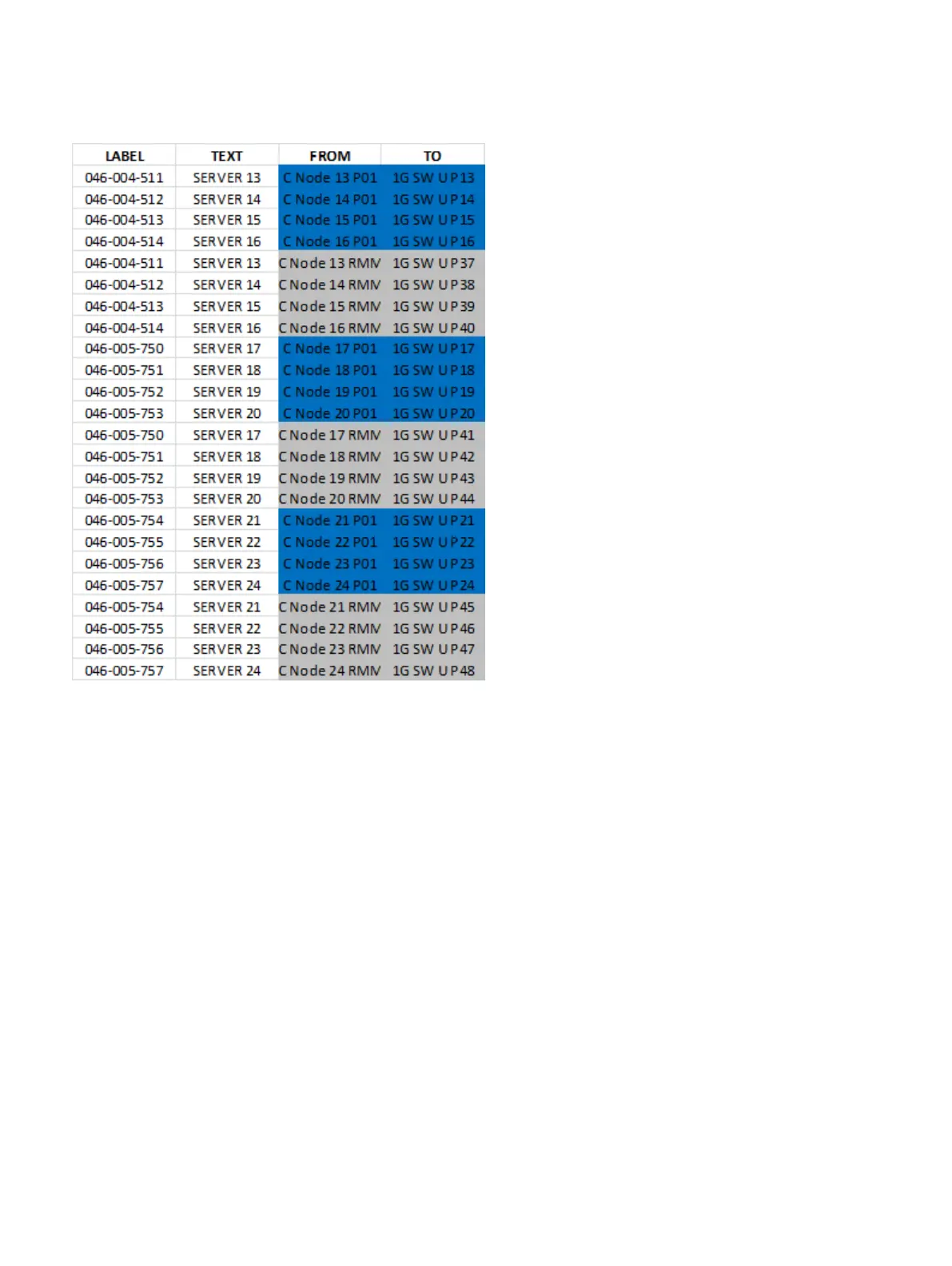

Figure 67 C-Series private switch cabling for the upper segment from the rear (continued)
Customer network connections
Customers connect to an ECS Appliance by way of 10 GbE ports and their own
interconnect cables. When multiple appliances are installed in the same data center,
daisy chain or home-run connections the private switches to a customer-provided
switch.
Network Cabling
114 D- and U-Series Hardware Guide
