Appendix A. Additional specications
Chassis dimensions

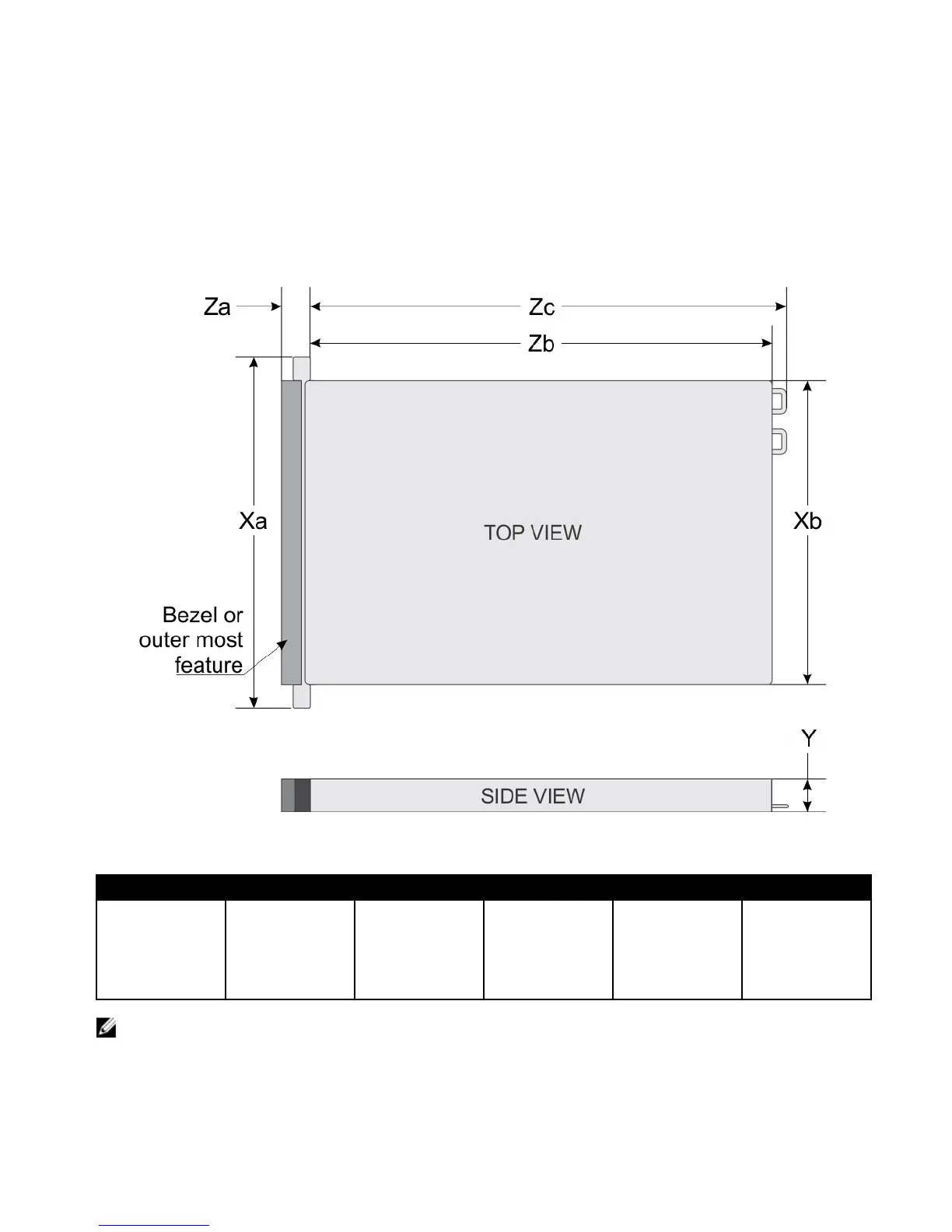

Figure 9. Chassis dimensions
Table 8. Dell EMC PowerEdge R740xd2 chassis dimensions
Xa Xb Y Za Zb
*
Zc
482.0 mm
(18.9 inches)
448.0 mm
(17.63 inches)
86.8 mm
(3.41 inches)
With bezel: 35.93
mm (1.41 inches)
Without bezel: 22.0
mm (0.866 inches)
810.264 mm
(31.9 inches)
844.826mm
(33.260 inches)
NOTE:
*
- Zb refers to the nominal rear wall external surface, where the system board I/O connectors are located.
