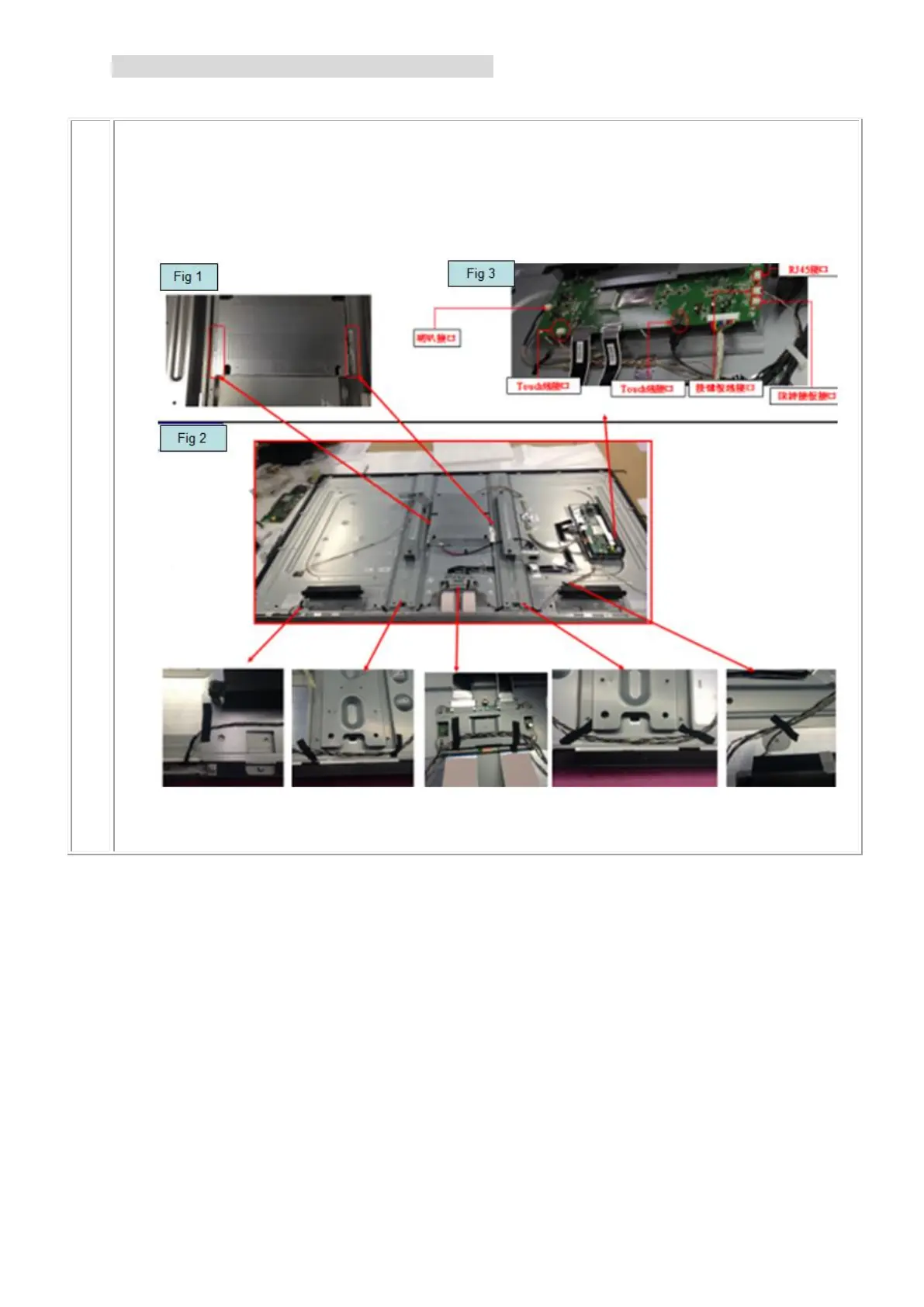

DELL C7017T (C7016H is applicable- exclude RJ45)
2
S3
Unplug cable <2>
（1）Peel off 2pcs aluminium foil.
（2）Unplug Interface board cable, keypad cable & 2pcs Touch cables. RJ45 cable & speaker cable.
（3）Peel off acetate tape from keypad cable, and speaker cable.
