Dell D03T Service Manual

About this task

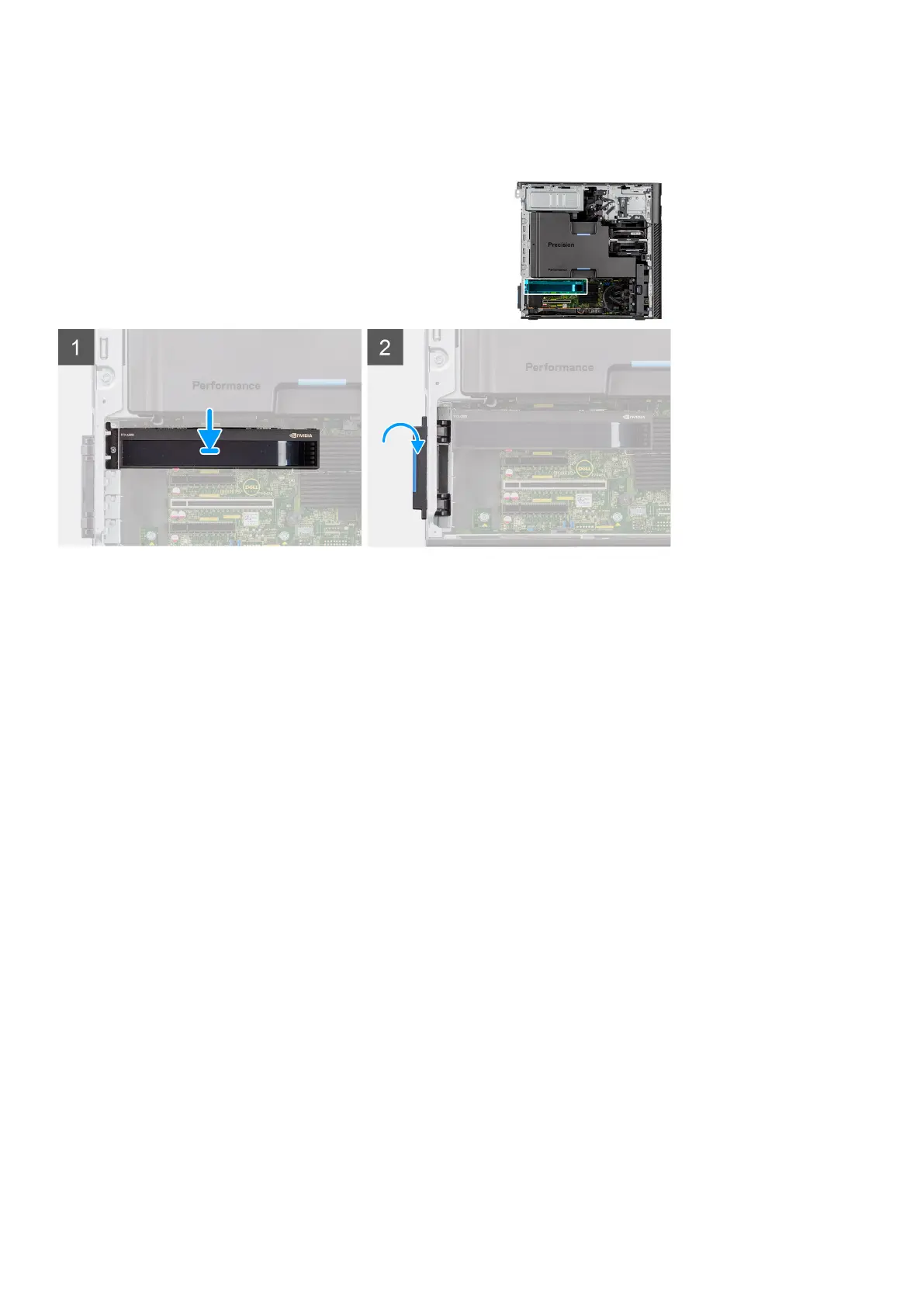

The following images indicate the location of the UltraSpeed Quad card and provide a visual representation of the installation
procedure.
Steps
1. Align the UltraSpeed Quad card with the expansion-card slot on the system board.
2. Using the alignment post, connect the UltraSpeed Quad card to the connector and press down firmly. Ensure that the
UltraSpeed Quad card is firmly seated.
3. Close the PCIe door, locking it into position.
Next steps
1. Install the air shroud.
2. Install the side cover.
3. Follow the procedure in After working inside your computer.
Removing the Thunderbolt PCIe card
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
3. Remove the air shroud.
About this task
The following images indicate the location of the Thunderbolt PCIe card and provide a visual representation of the removal
procedure.
Removing and installing components
75
