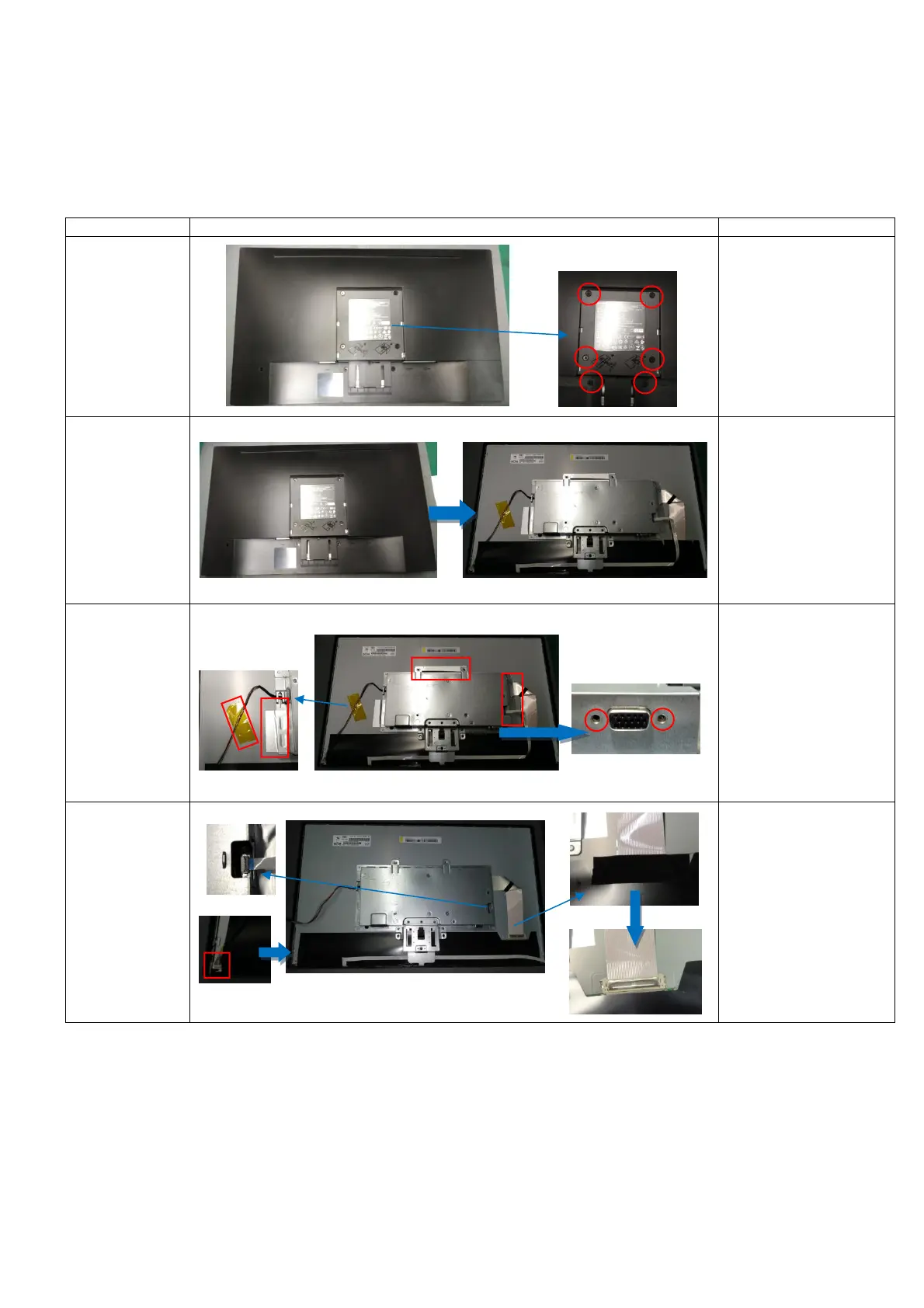

6
Tools: 2 Power screwdrivers (φ=5mm,L=60mm); 1 small cross screwdriver; turnbuckle driver;
Setting: Power screwdriver torque A=12 kgF. Cm; torque B=6 kgF. Cm; torque C=4 kgF. Cm torque
D=0.7 kgF. Cm.
Note: Firstly, put the monitor on a soft, flat and clean surface, wear gloves.
Step
Figure
Description
Remove
screws.
1. Place the machine
flat on the work table.
2. Remove rear cover
screws.
Remove the
rear cover.
Remove the
screws & tear
the tape and
tear the foil.
1. Remove the foil on
the shieldplate.
2. Remove the six
corners screw.
3. Remove the tape o
f
the fixed wire.
Pull the line.
1. Unplug the backlight
line and the function
key line.
2. Pull off the wire
tape, then pull the line
out.
Mechanical Instruction
