Air shroud
Removing the air shroud
Prerequisites
CAUTION: Never operate your system with the air shroud removed. The system may get overheated quickly,
resulting in shutdown of the system and loss of data.
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
Hold the air shroud at both ends, and lift it away from the system.

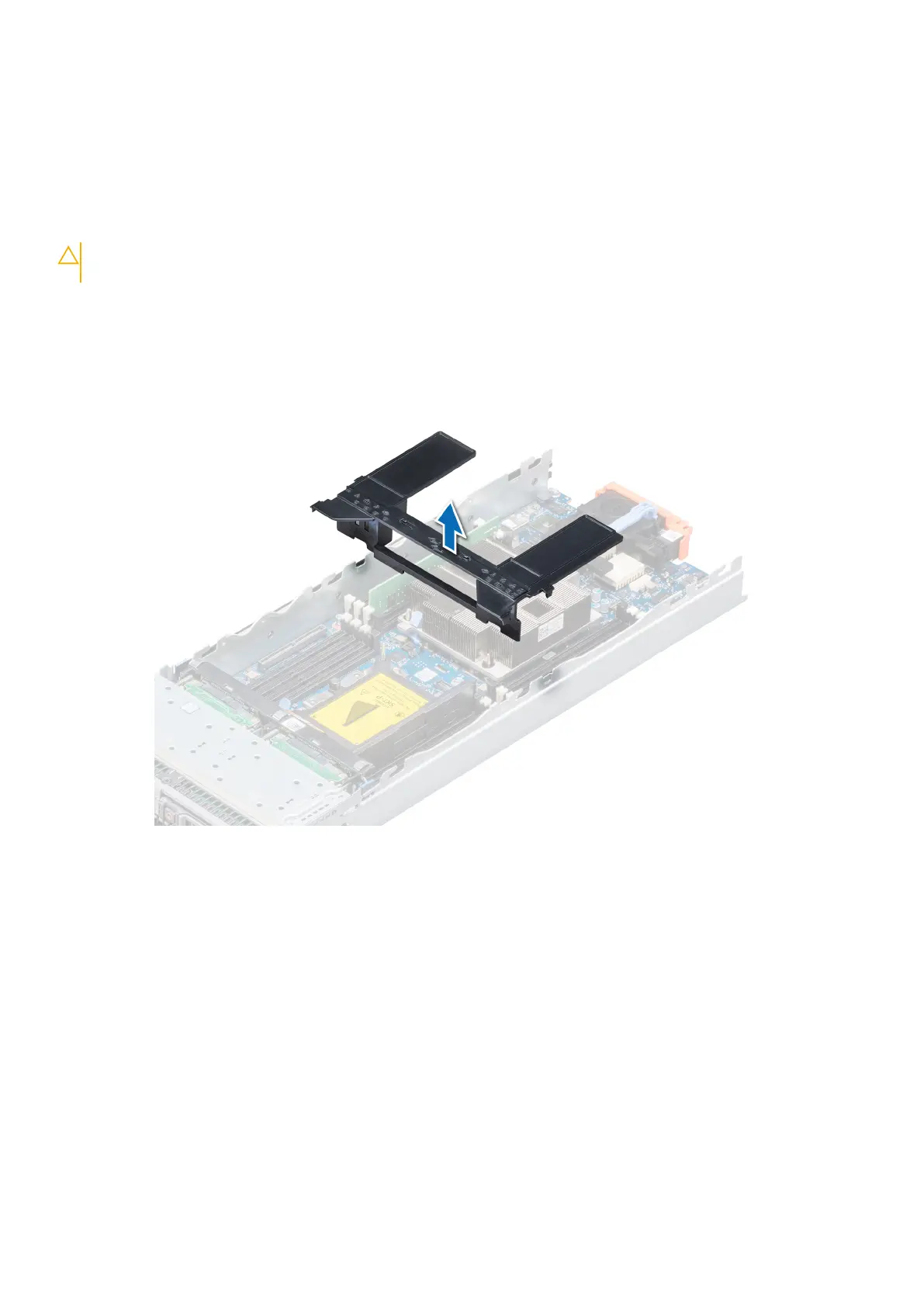

Figure 13. Removing the air shroud
Next steps
Install the airshroud
Installing the air shroud
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
Steps
1. Align the tabs on the air shroud with the slots on the system.
2. Lower the air shroud into the system until the air shroud is firmly seated.
Installing and removing system components
21
