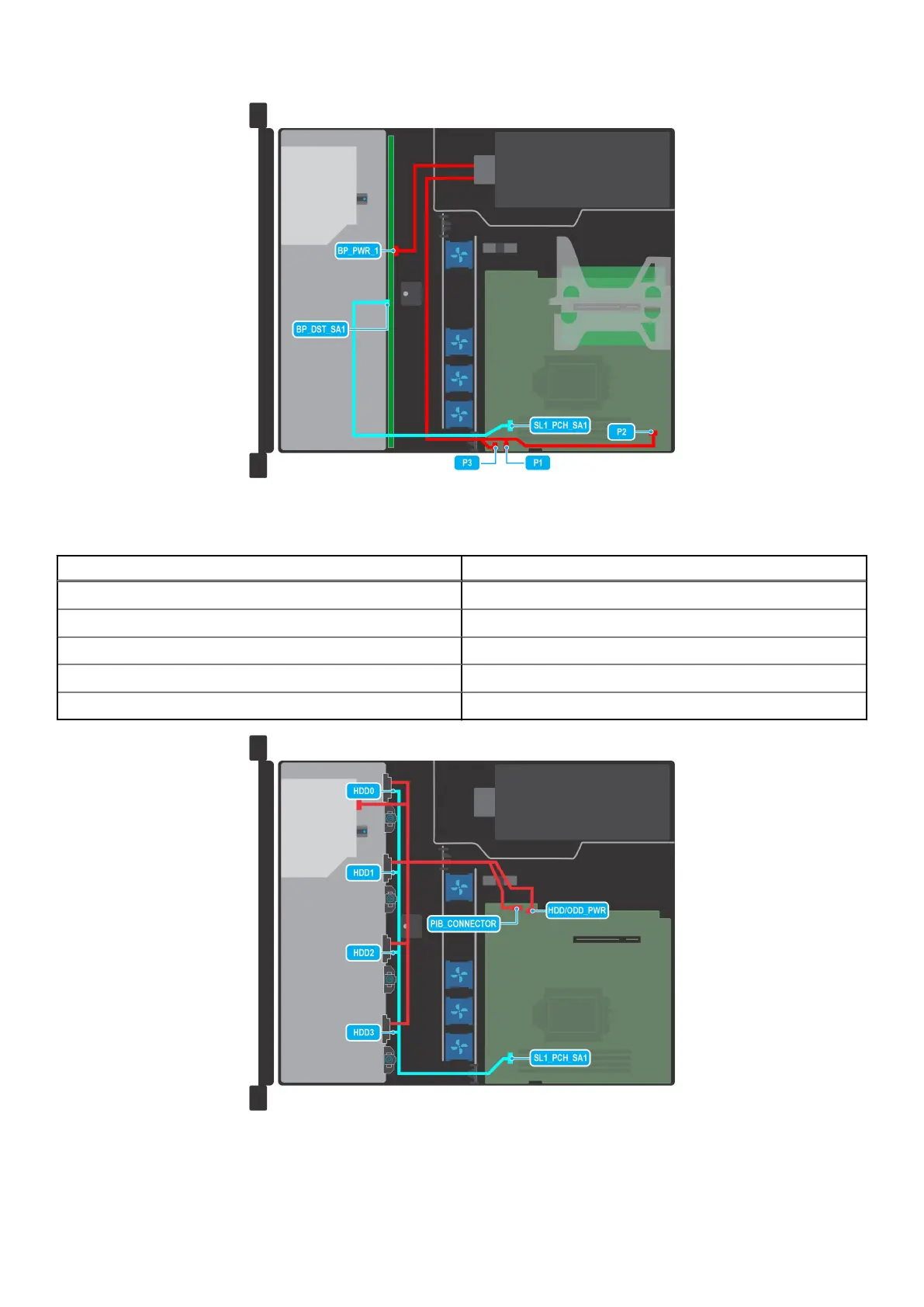

Figure 35. Cable routing for 4 x 3.5-inch backplane configuration with onboard SATA and PSU (Bronze)
Table 12. Cable routing - 4 x 3.5-inch backplane configuration with onboard SATA and PSU (Bronze)
From To
BP_DST_SA1 (Signal connector on backplane) SL1_PCH_SA1 (Signal connector on system board)
BP_PWR_1 (Power connector on backplane) Cabled power supply
P1 (Power connecter 1) Cabled power supply
P2 (Power connecter 2) Cabled power supply
P3 (Power connecter 3) Cabled power supply
Figure 36. Cable routing - 4 x 3.5-inch cabled drive configuration
Installing and removing system components
43
