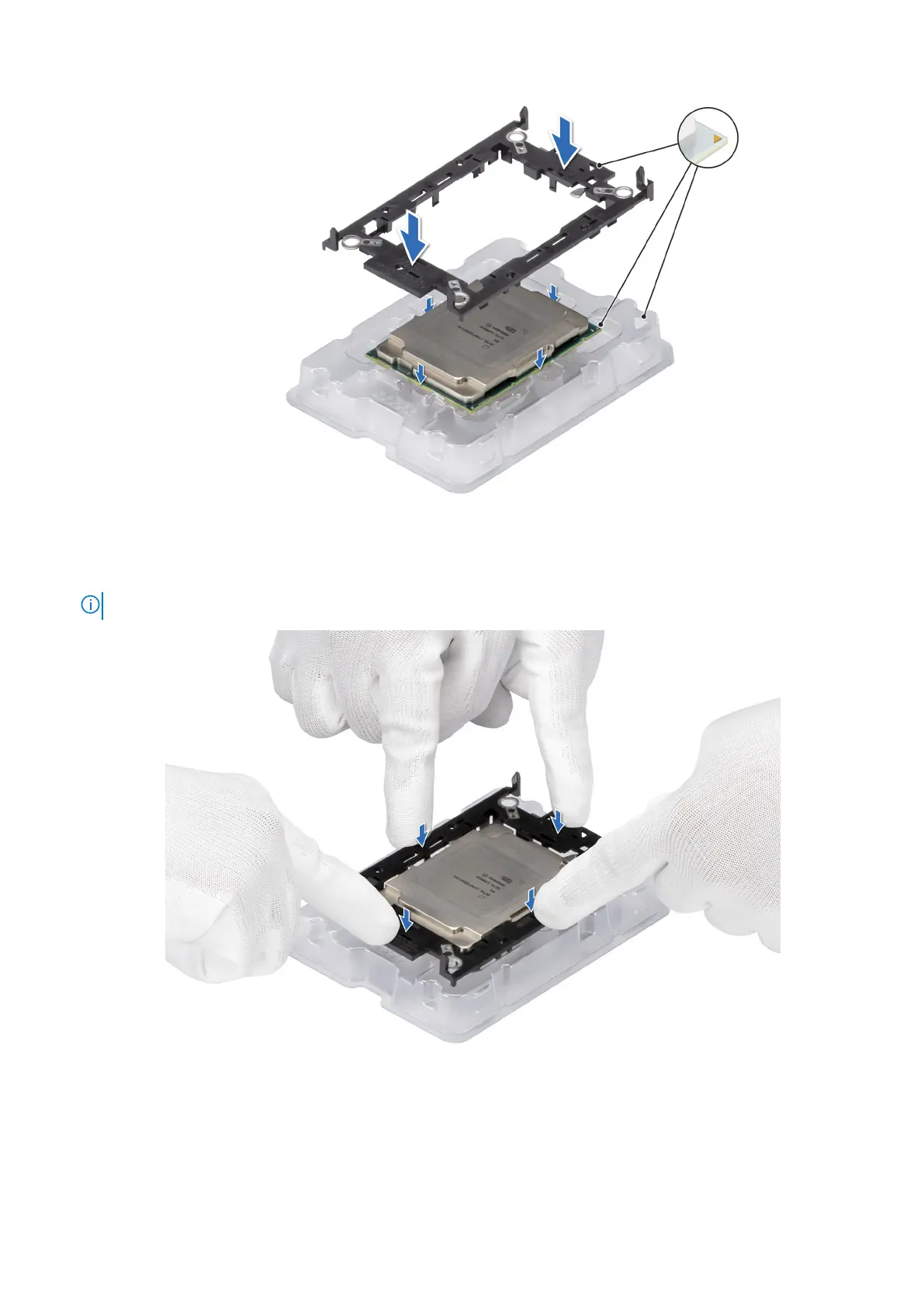

Figure 60. Installing the processor bracket
3. Align the processor with retaining clip, by using the fingers press the retaining clip on all the four sides until it clicks into
place.
NOTE: Ensure the processor is securely latched to the retaining clip.
Figure 61. Press the retaining clip on the four sides
4. If you are using an existing heat sink, remove the thermal grease from the heat sink by using a clean lint-free cloth.
5. Use the thermal grease syringe included with your processor kit to apply the grease in a thin spiral on the bottom of the heat
sink.
