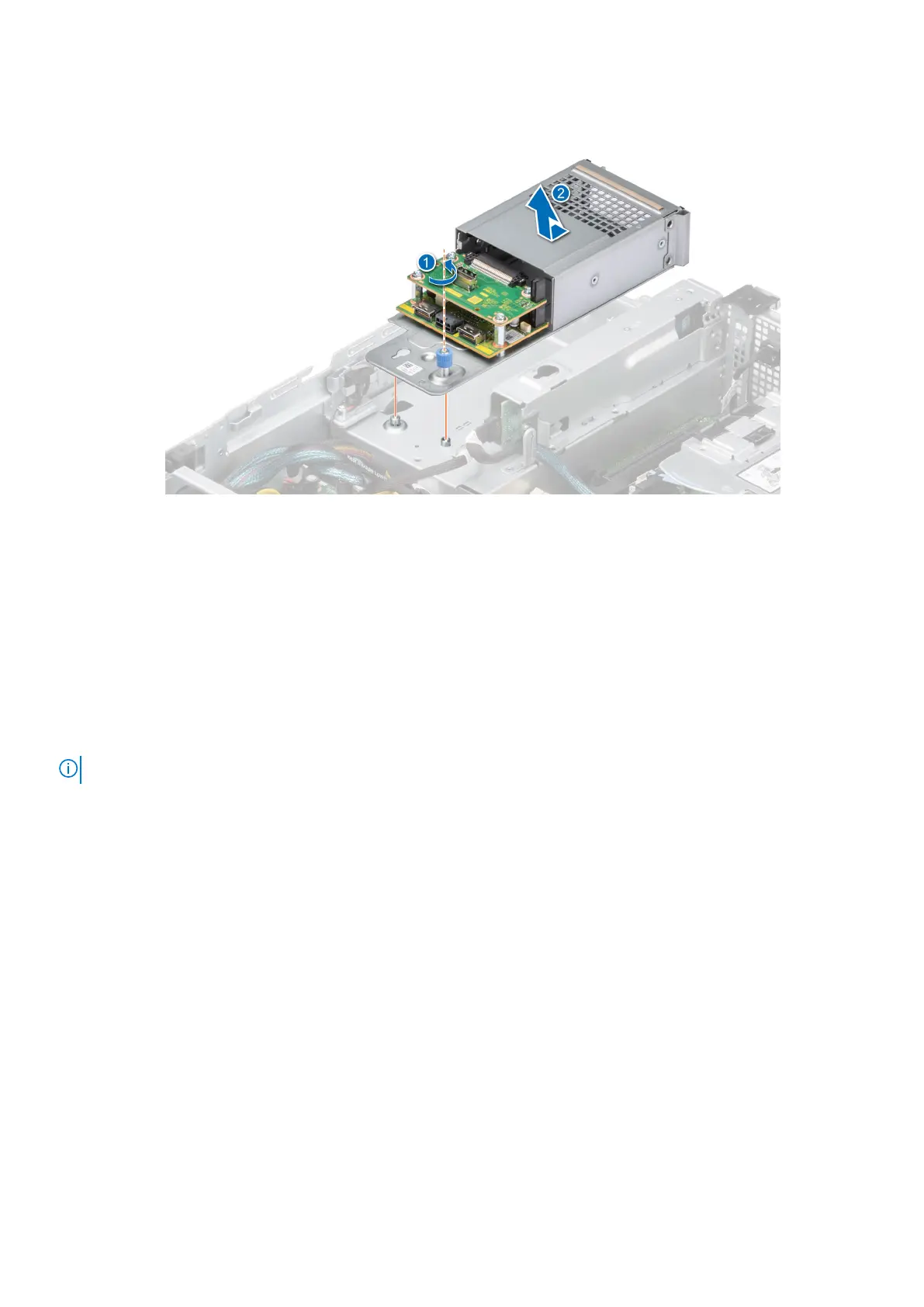

Figure 110. Removing the rear drive module
Next steps
1. Replace the rear drive module.
Installing the rear drive module
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
NOTE: The 2 x 2.5-inch rear drive module can be installed only with 12 x 3.5-inch backplane configuration system.
Steps
1. Slide the rear drive module towards the rear of the system until it is locked after placing it inside the chassis.
Installing and removing system components
