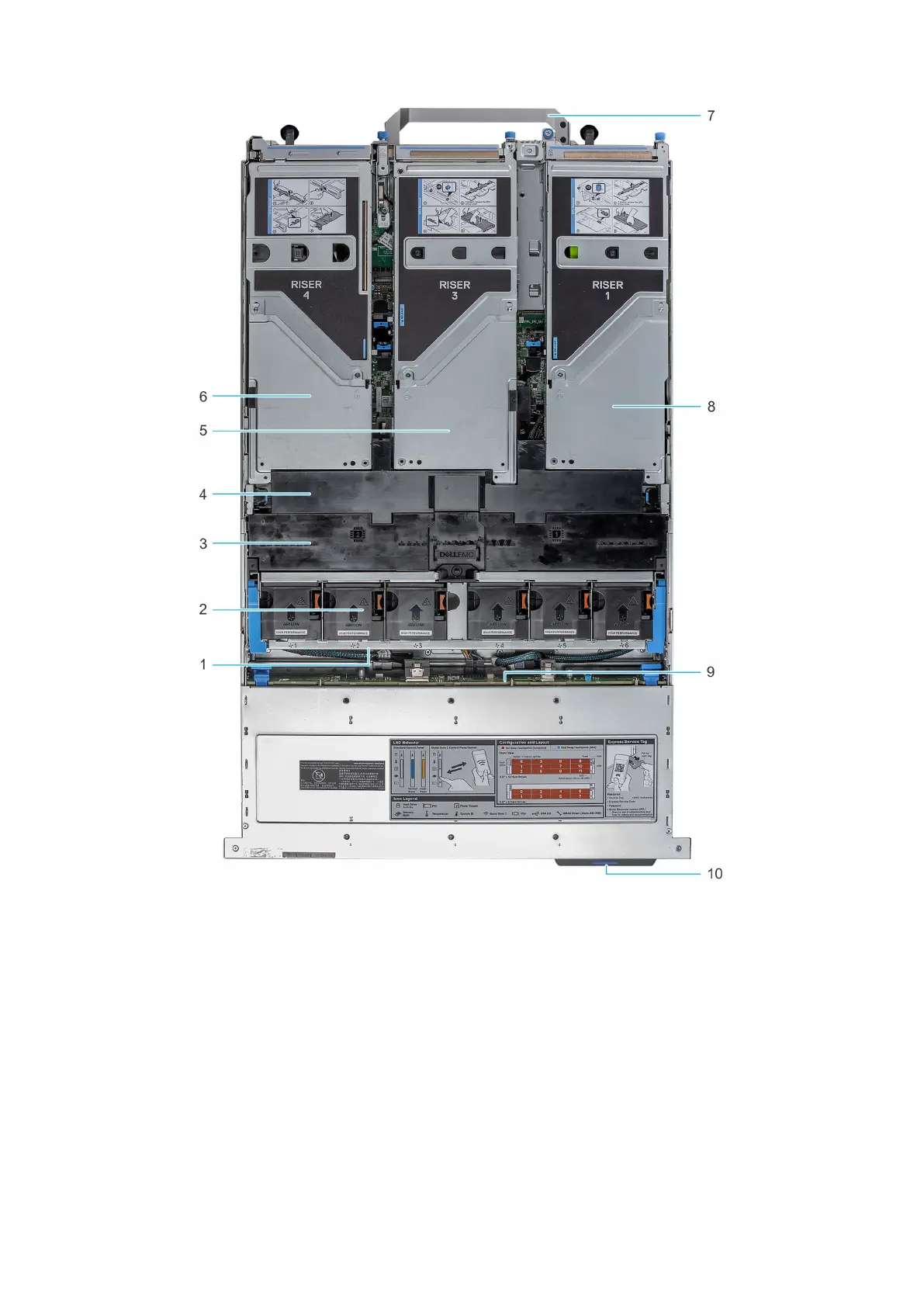

Figure 12. Inside the system with full length risers
1.
Cooling fan cage assembly 2. Cooling fan
3. GPU air shroud 4. GPU air shroud top cover
5. Riser 3 6. Riser 4
7. Handle 8. Riser 1
9. Drive backplane 10. Service tag
Locating the Express Service Code and Service Tag
The unique Express Service Code and Service Tag is used to identify the system. The information tag is located on the front of
the system that includes system information such as Service Tag, Express Service Code, Manufacture date, NIC, MAC address,
QRL label, and so on. If you have opted for the secure default access to iDRAC, the Information tag also contains the iDRAC
secure default password. If you have opted for iDRAC Quick Sync 2, the Information tag also contains the OpenManage Mobile
(OMM) label, where administrators can configure, monitor, and troubleshoot the PowerEdge servers.
