Steps

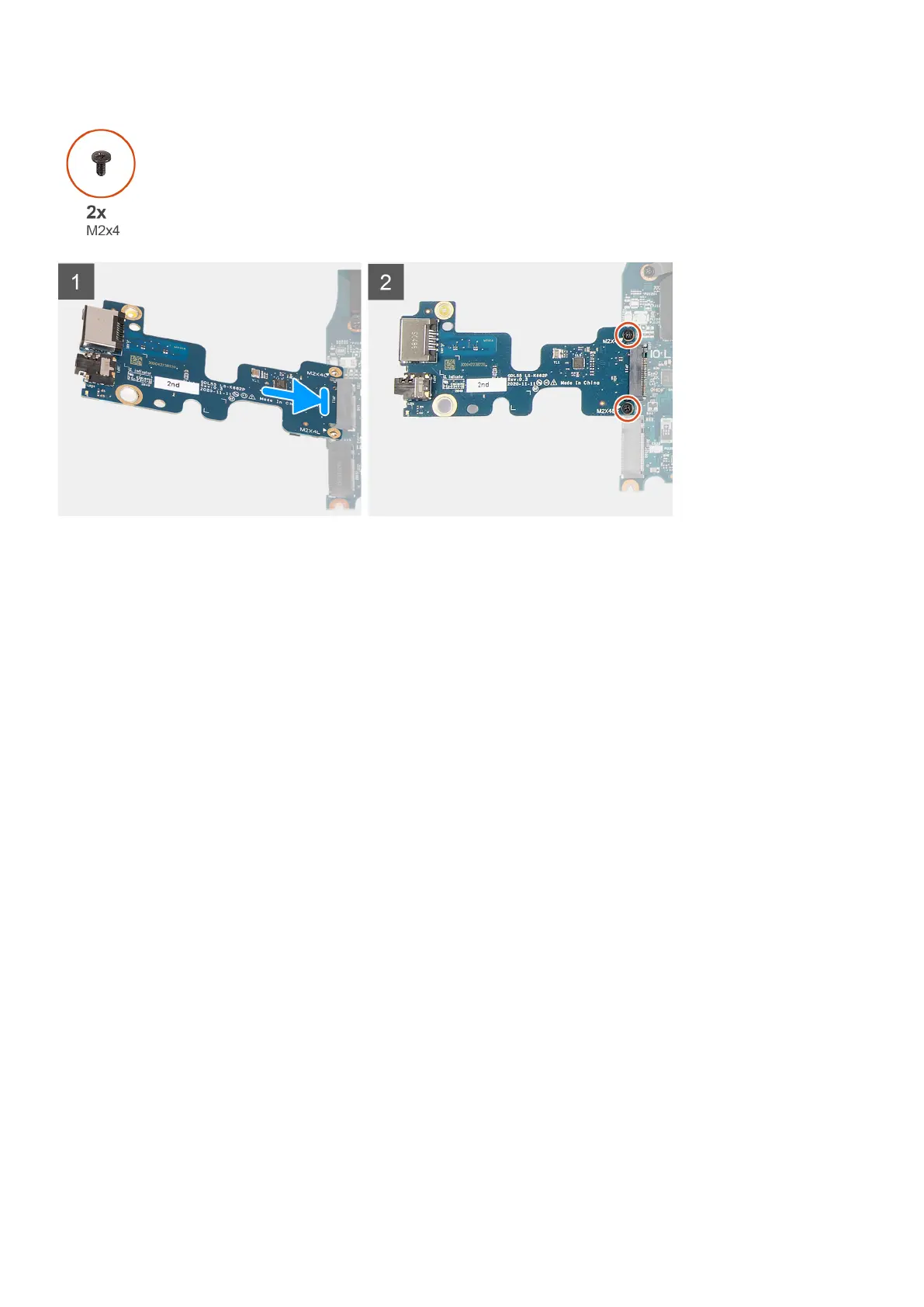

1. Align the screw holes on the I/O board with the screw holes on the system board.
2. Replace the two screws (M2x4) that secure the I/O board to the system board.
3. Turn the system board over.
Next steps
For computers shipped with NVIDIA GeForce RTX 3050, and NVIDIA GeForce RTX 3050 Ti
1. Install the system board.
2. Install the memory module.
3. Install the wireless card.
4. Install the solid-state drive 2.
5. Install the solid-state drive 1.
6. Install the rear cover
7. Install the battery.
8. Install the base cover.
9. Follow the procedure in After working inside your computer.
Speakers
Removing the speakers
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the solid-state drive 2.
About this task
The following image indicates the location of the speakers and provides a visual representation of the removal procedure.
34
Removing and installing components
