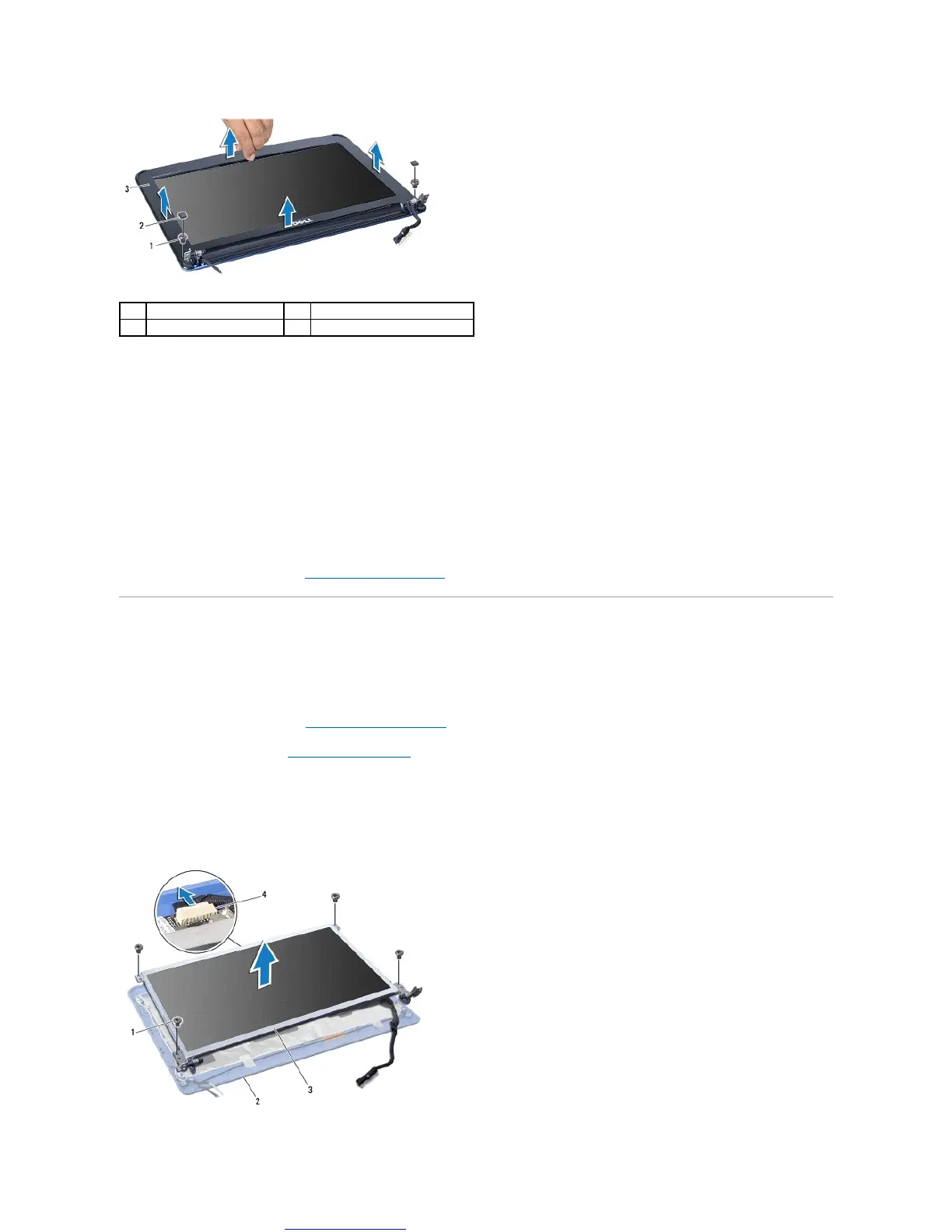

6. Remove the display bezel.

Replacing the Display Bezel

1. Realign the display bezel over the display panel, and gently snap into place.

2. Replace the two screws that secure the display bezel.

3. Replace the two rubber pads (one on either side) on the display bezel screws.

4. Press and replace the hinge cover caps.

5. Replace the display assembly (see Replacing the Display Assembly).
Display Panel

Removing the Display Panel

1. Remove the display assembly (see Removing the Display Assembly).

2. Remove the display bezel (see Removing the Display Bezel).

3. Disconnect the camera cable from camera cable connector on the display cover.

4. Remove the four screws securing the display panel to the display cover.

5. Remove the display panel.
1
screws (2)
2
rubber pads (2)
3
display bezel


