Procedure
NOTE: To avoid any potential damage to the cables, ensure to release them
from the routing guides.

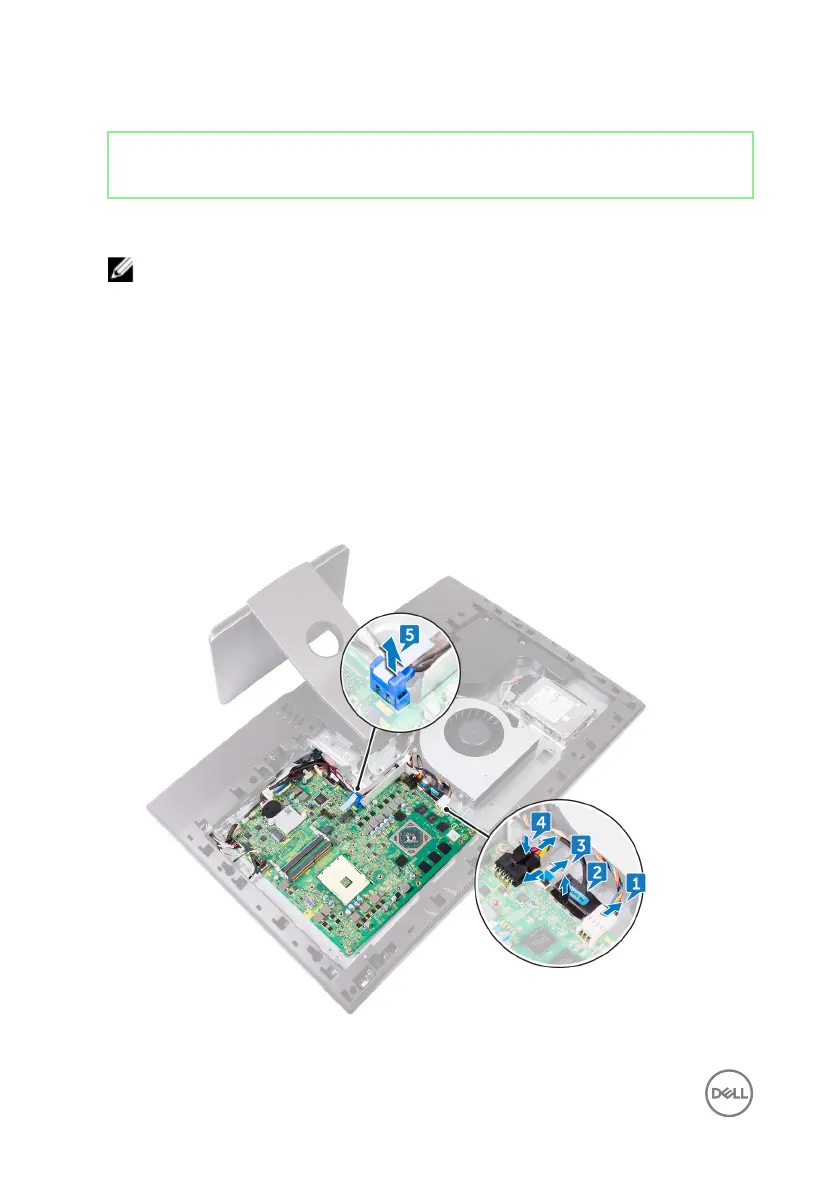

1 Disconnect the fan-power cable (FAN_SYS) from the system board.
2 Using the pull tab, disconnect the display cable (MB-DISPC) from the system
board.
3 Open the latch and disconnect the power-button board cable (0SDC1) from the
system board.
4 Press down the latch and disconnect the power cable (MB-DCPWR) from the
system board.
5 Using the pull tab, disconnect the hard-drive data cable (SATA0) from the
system board.
