Dell Inspiron 7306 2-in-1 Silver - Installing the M.2 2280 Solid-State Drive;Intel Optane H10

Steps

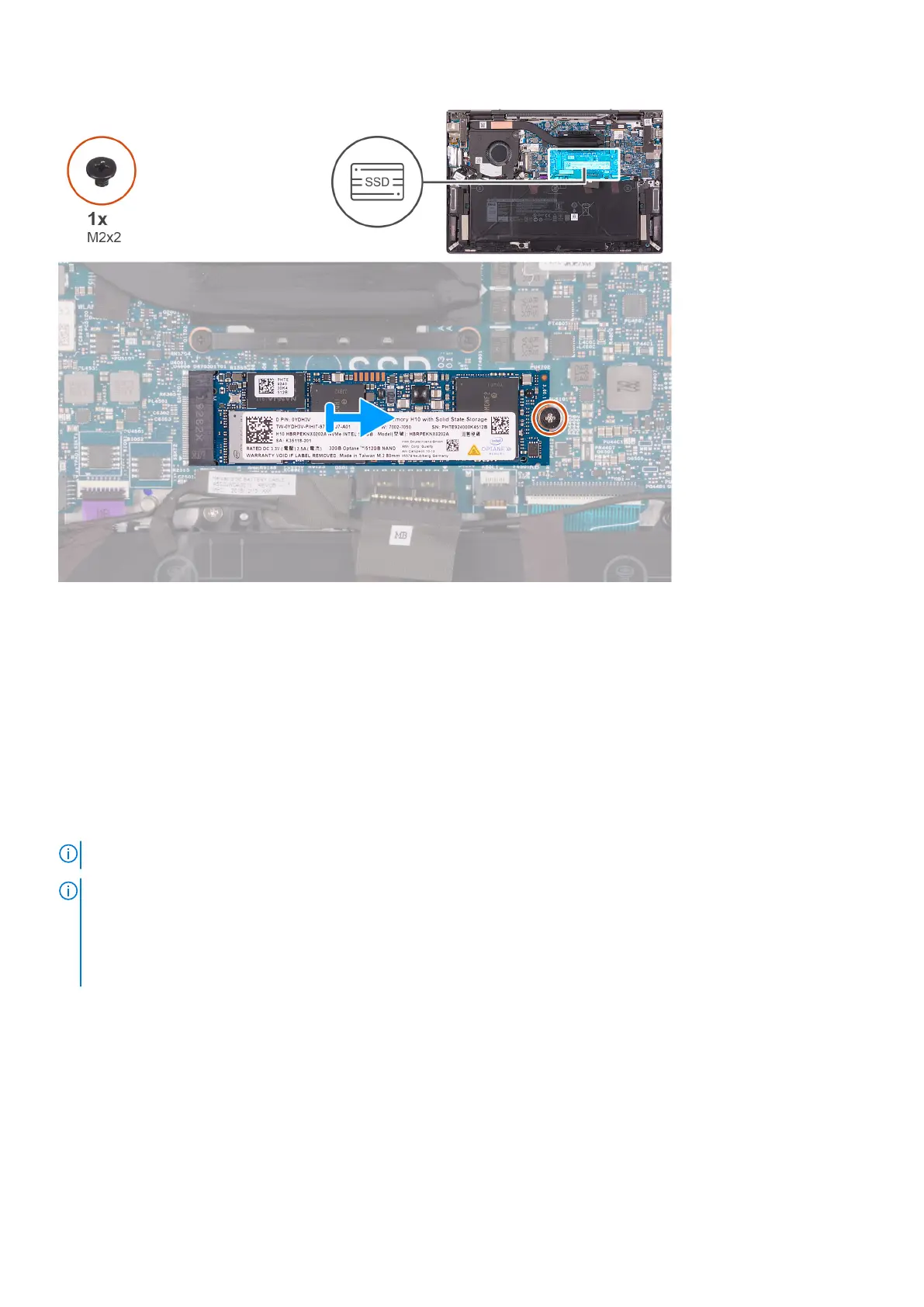

1. Remove the screw (M2x2) that secures the M.2 2280 solid-state drive/Intel Optane to the system board.
2. Slide and remove the M.2 2280 solid-state drive/Intel Optane from the M.2 card slot on the system board.
Installing the M.2 2280 solid-state drive/Intel Optane H10
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
NOTE: This procedure applies if you are installing a M.2 2280 solid-state drive or M.2 2280 Intel Optane H10.
NOTE: The M.2 card installed on your computer will depend on the configuration ordered. Supported card configurations on
the M.2 card slot:
● M.2 2230 solid-state drive + 2230 mounting bracket
● M.2 2280 solid-state drive
● M.2 2280 Intel Optane Memory H10
The following image(s) indicate the location of the M.2 2280 solid-state drive/Intel Optane H10 and provides a visual
representation of the installation procedure.
