Steps

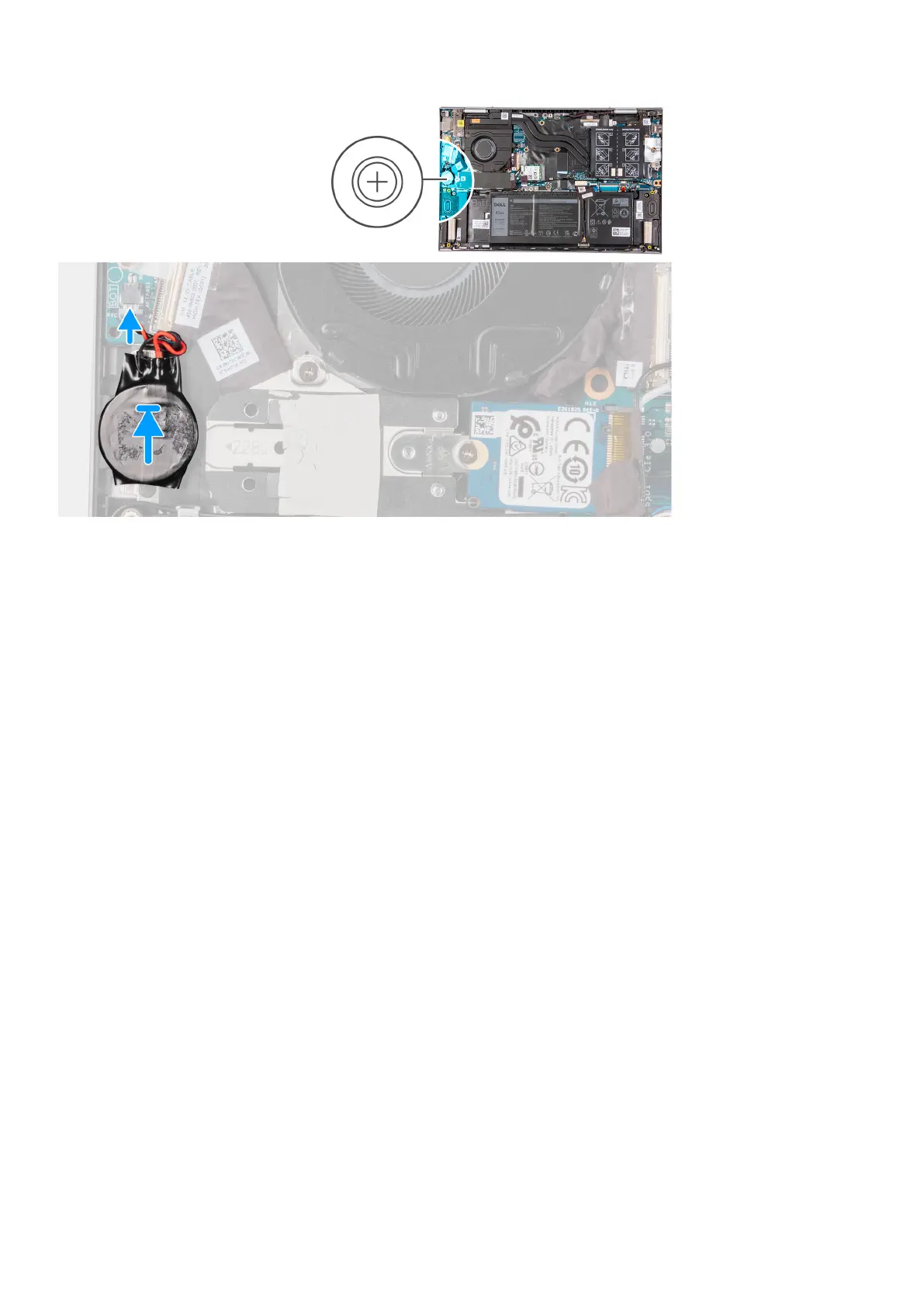

1. Adhere the coin-cell battery to the slot on the palm-rest and keyboard assembly.
2. Connect the coin-cell battery cable to the I/O board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Memory module
Removing the memory module
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following image indicates the location of the memory modules and provides a visual representation of the removal
procedure.
22
Removing and installing components
