3. Note the speaker cable routing, and remove the speaker cable from the routing guides on the palm-rest and keyboard
assembly.
4. Lift the speakers along with the cables, off the palm-rest and keyboard assembly.
Installing the speakers
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

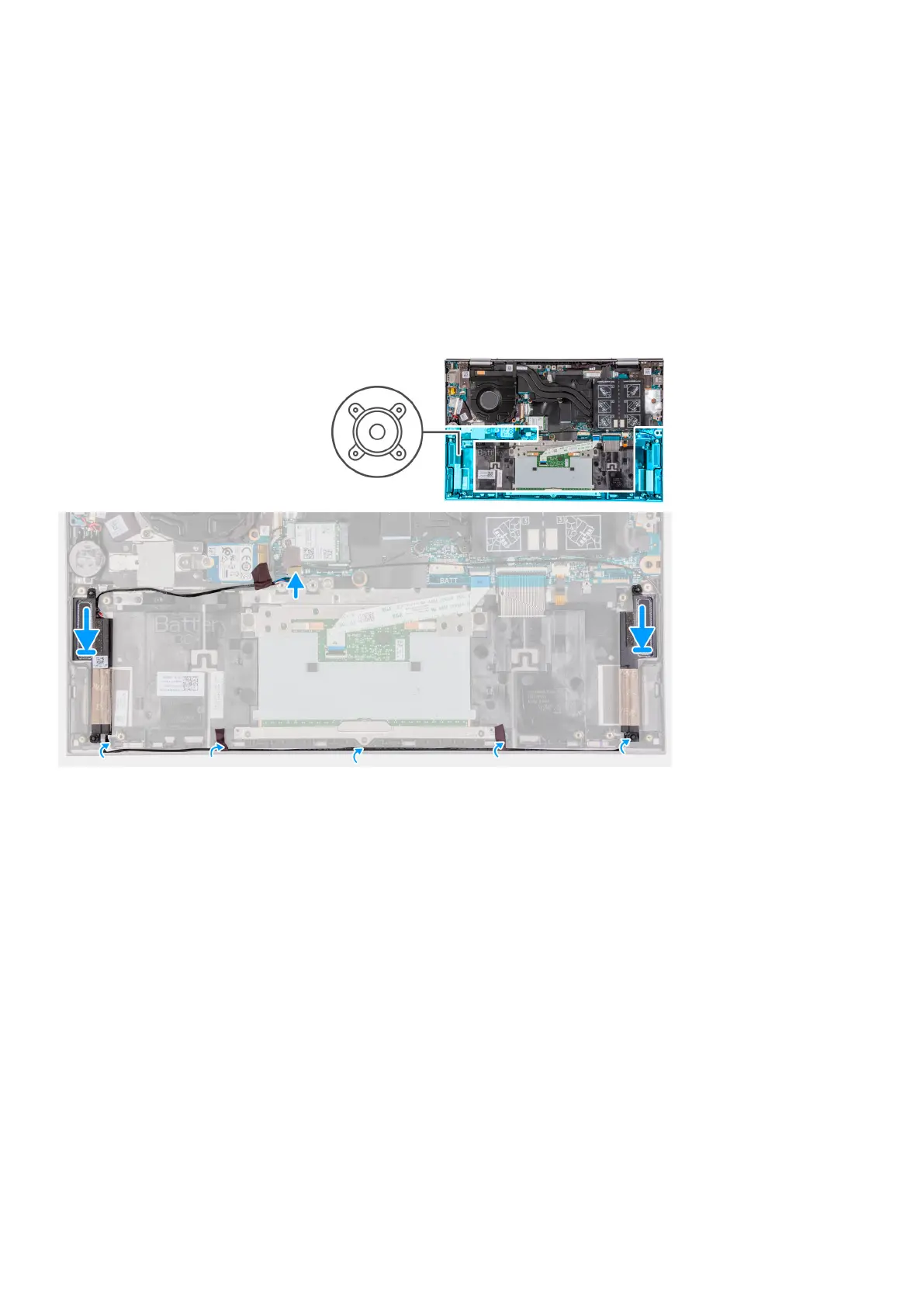

The following image indicates the location of the speakers and provides a visual representation of the installation procedure.
Steps
1. Using the alignment posts and rubber grommets, place the speakers on the slots of the palm-rest and keyboard assembly.
2. Route the speaker cable through the routing guides on the palm-rest and keyboard assembly.
3. Adhere the tapes that secure the speaker cable to the palm-rest and keyboard assembly.
4. Connect the speaker cable to the system board.
Next steps
1. Install the battery
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Heat sink
Removing the heat sink
Prerequisites
1. Follow the procedure in Before working inside your computer.
34
Removing and installing components
