Steps

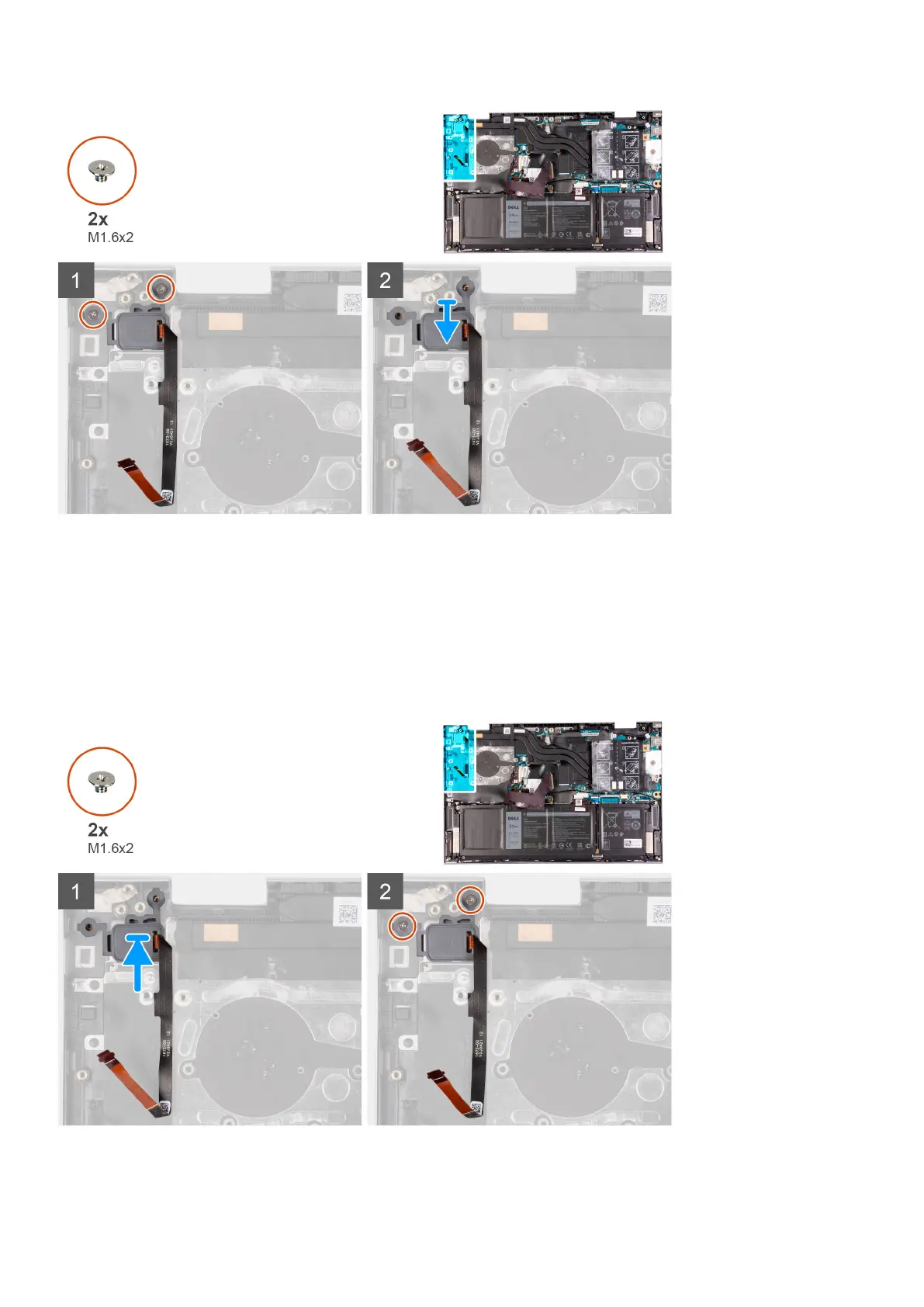

1. Remove the two screws (M1.6x2) that secure the power button to the palm-rest and keyboard assembly.
2. Lift the power button, along with the fingerprint-reader cable, off the slot on the palm-rest and keyboard assembly.
Installing the power button with fingerprint reader
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
50
Removing and installing components
