Dell Latitude 3189 - M.2 Solid State Drive (SSD) removal and installation

3 Install the:
a battery
b base cover
c microSD card
4 Follow the procedure in After working inside your computer.
Solid State Drive (SSD)
Removing M.2 Solid State Drive (SSD)
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a microSD card
b base cover
c battery

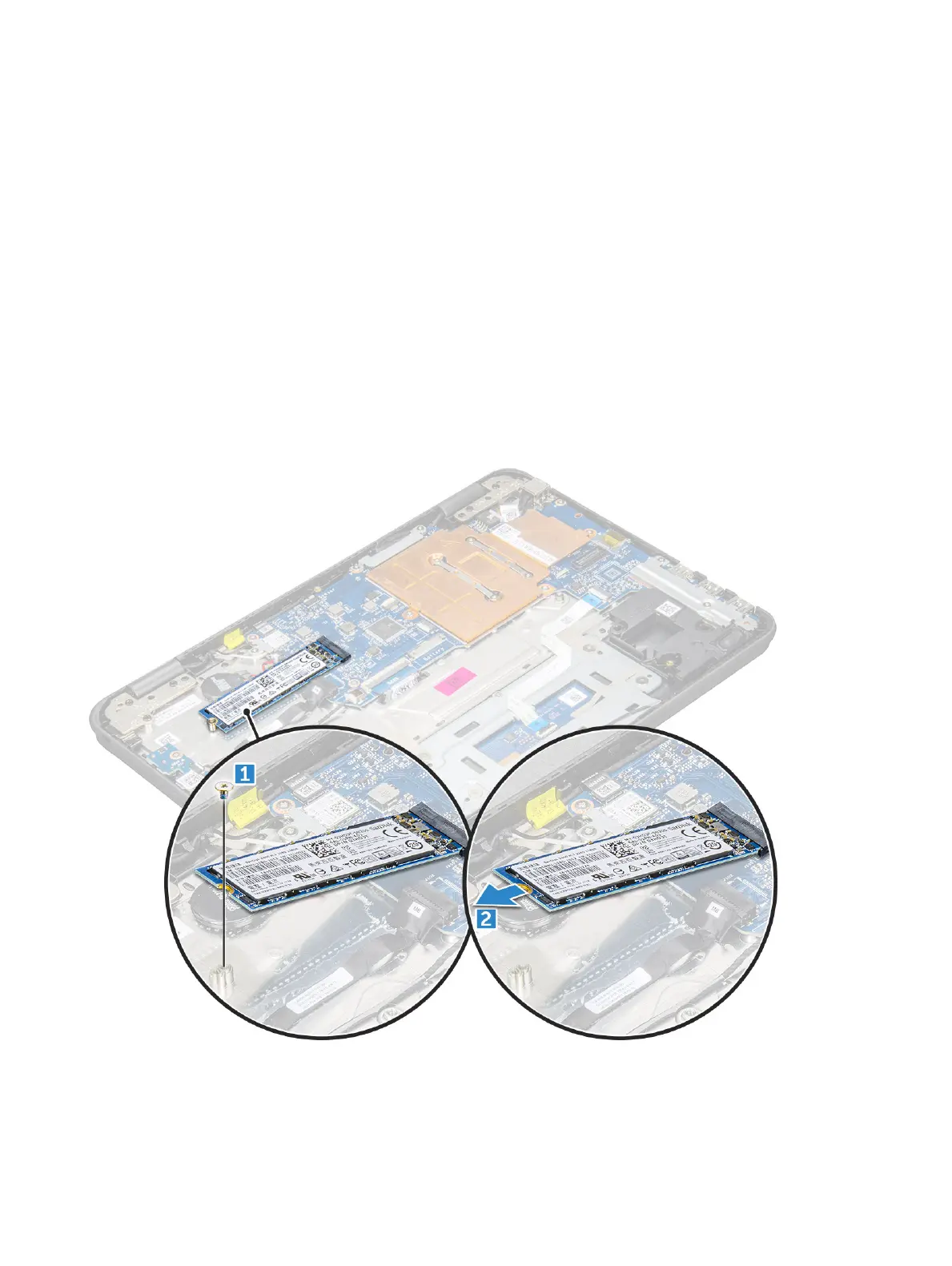

3 To remove the SSD:
a Remove the M2.0x3.0 screw that secures the SSD card [1].
b Slide and lift the SSD card from the system board [2].
Removing and installing components 17
