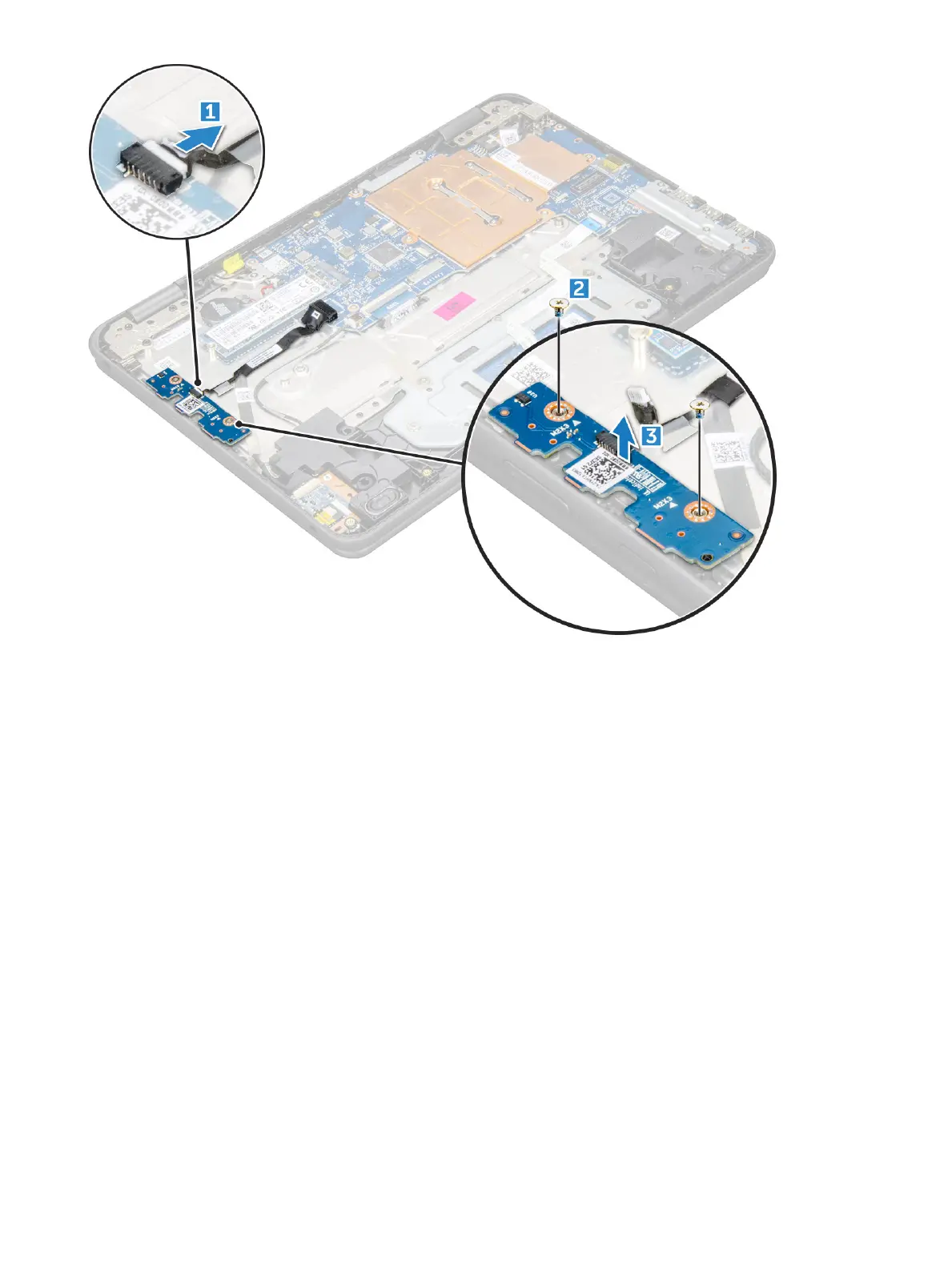

Installing power switch board
1 Align the screw hole on the power switch board into the slot on the computer.
2 Replace the M2.0x3.0 screws that secure the power switch board to the computer.
3 Connect the power switch cable to the connector on the power switch board.
4 Install the:
a battery
b base cover
c microSD card
5 Follow the procedure in After working inside your computer.
Audio board
Removing audio board
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a microSD card
b base cover
c battery
Removing and installing components
19
