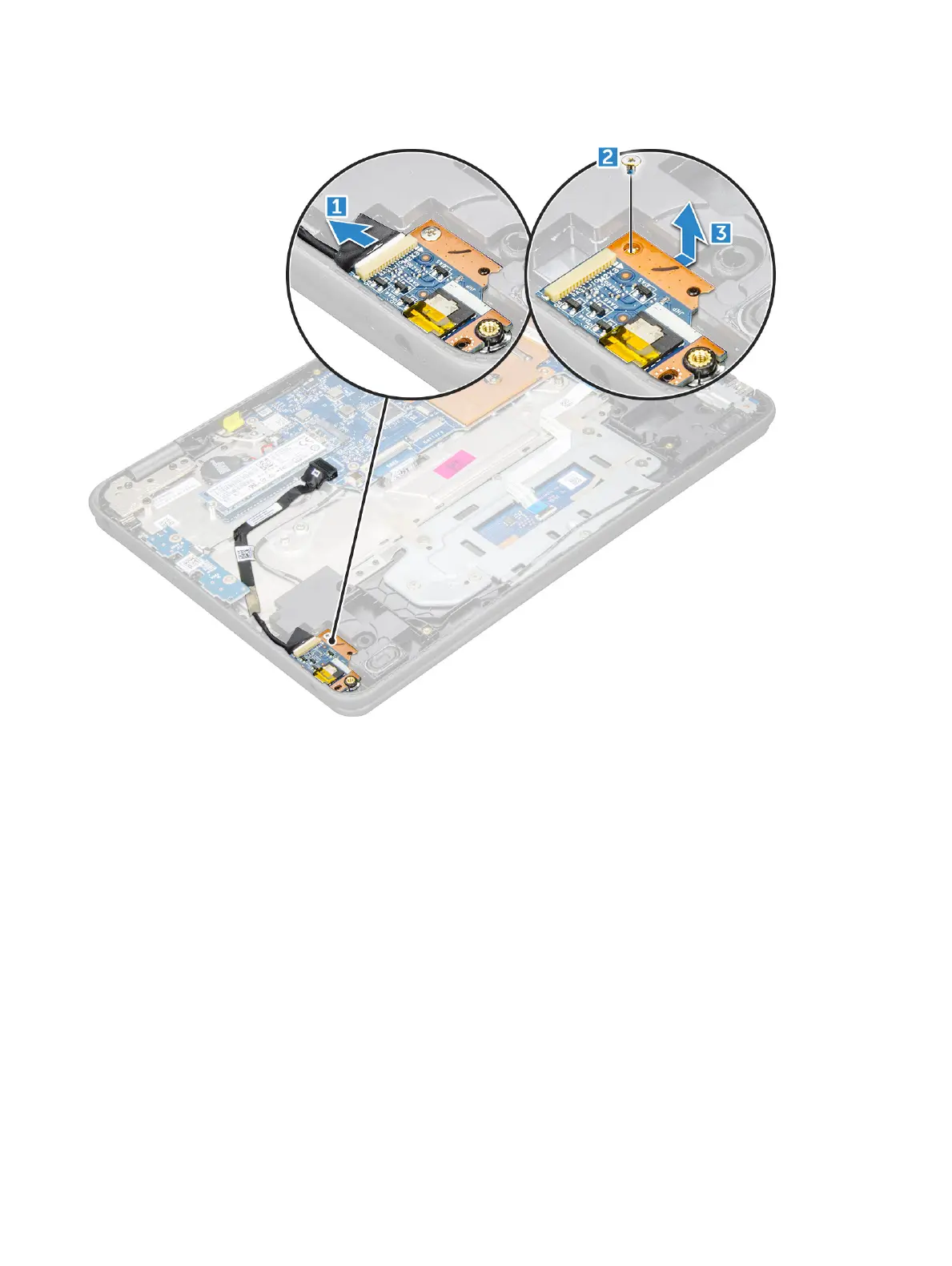

3 To remove the audio board:
a Disconnect the audio cable from the connector on the audio board [1].
b Remove the M.2.0x3.0 screw that secures the audio board on the computer [2].
c Lift the audio board away from the computer [3].
Installing audio board
1 Insert the audio board into the slot on the computer.
2 Replace the M2.0x3.0 screw that secure the audio board to the computer.
3 Connect the audio cable to the connector on the audio board.
4 Install the:
a battery
b base cover
c microSD card
5 Follow the procedure in After working inside your computer.
