Dell Latitude 3420 - Installing the Memory Module

4. Enter the service mode.
5. Remove the base cover.
About this task

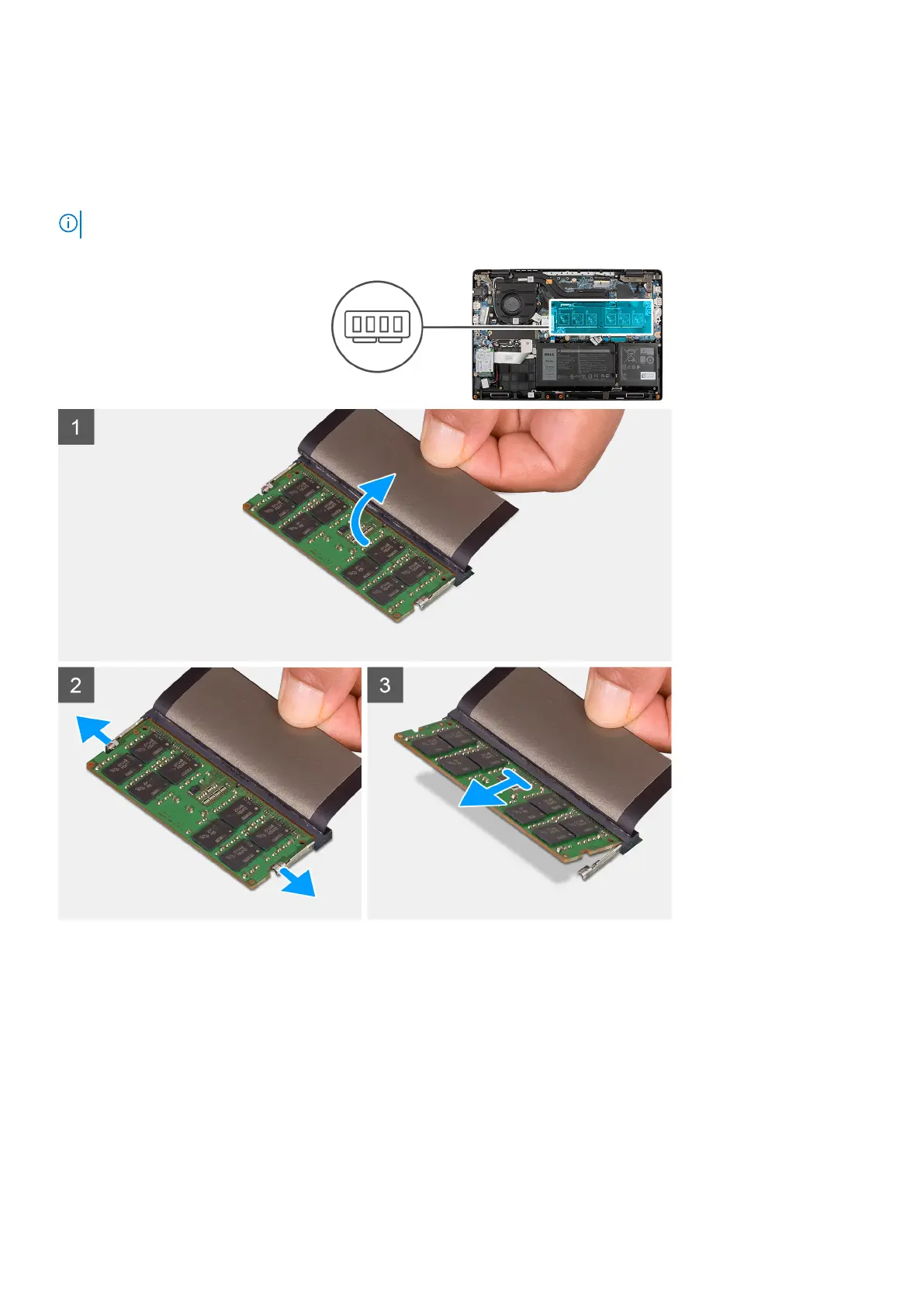

The following image indicates the location of the memory module and provides a visual representation of the removal procedure.
NOTE: The location of the memory module may vary depending on your system.
Steps
1. Lift the mylar to uncover the memory module.
2. Pry the retention clips securing the memory module slot until the memory module pops-up.
3. Remove the memory module from the memory module slot.
Installing the memory module
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
Removing and installing components
23
