Installing WLAN card

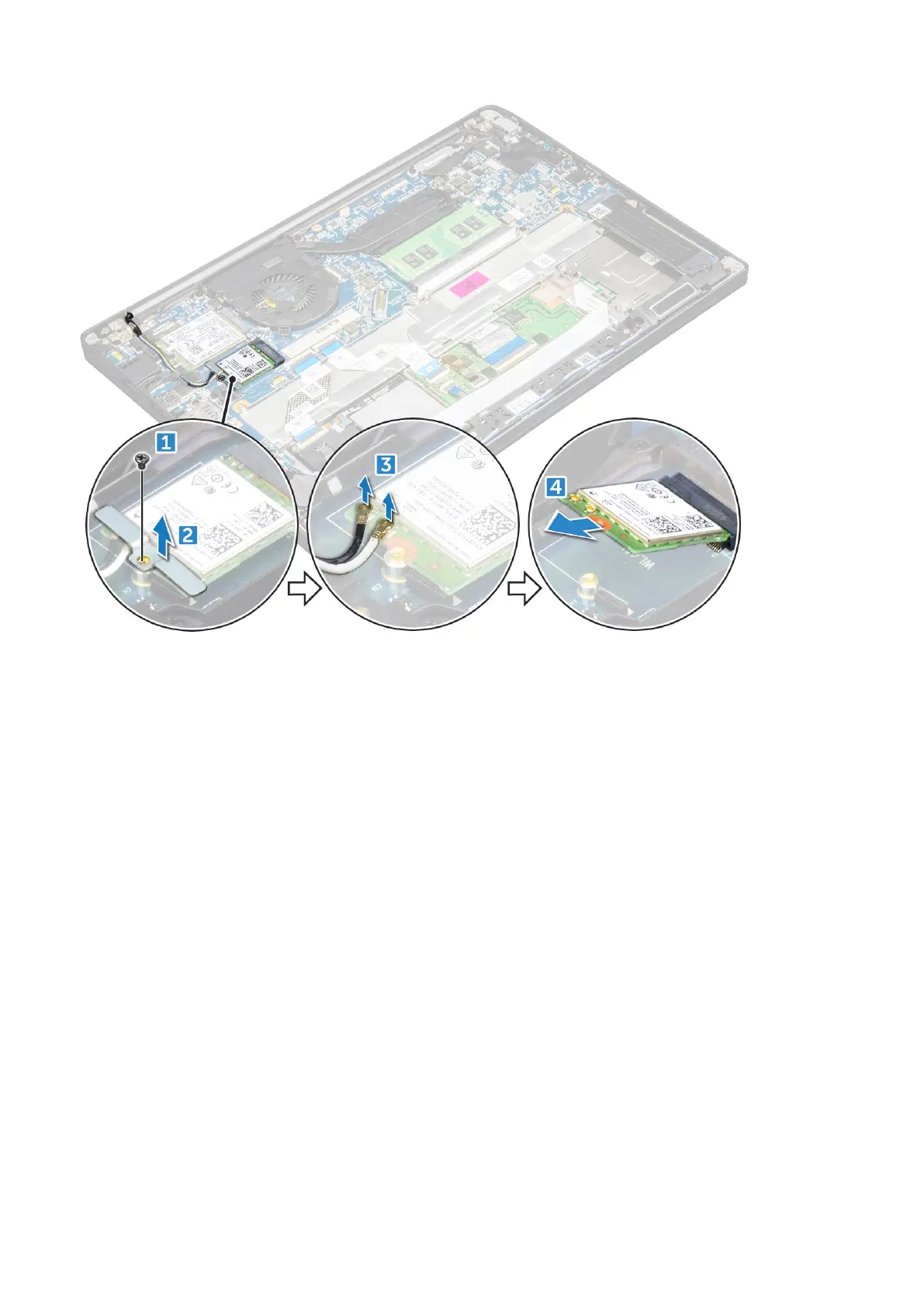

1. Insert the WLAN card into the connector on the system board.
2. Connect the WLAN cables to the connectors on the WLAN card.
3. Place the metal bracket and tighten the M2.0 x 3.0 screw to secure it to the computer.
4. Connect the battery cable to the connector on the system board.
5. Install the .base cover.
6. Follow the procedure in After working inside your computer.
Memory modules
Removing memory module
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Disconnect the battery cable from the connector on the system board.
4. To remove the memory module:
a. Pull the clips securing the memory module until the module snaps-out [1].
b. Remove the memory module from the connector on the system board [2].
