Dell Latitude 7290 - System Board

a system board
b heat sink
c WLAN card
d WWAN card
e PCIe SSD card
f memory module
g battery
h base cover
5 Follow the procedure in After working inside your computer.

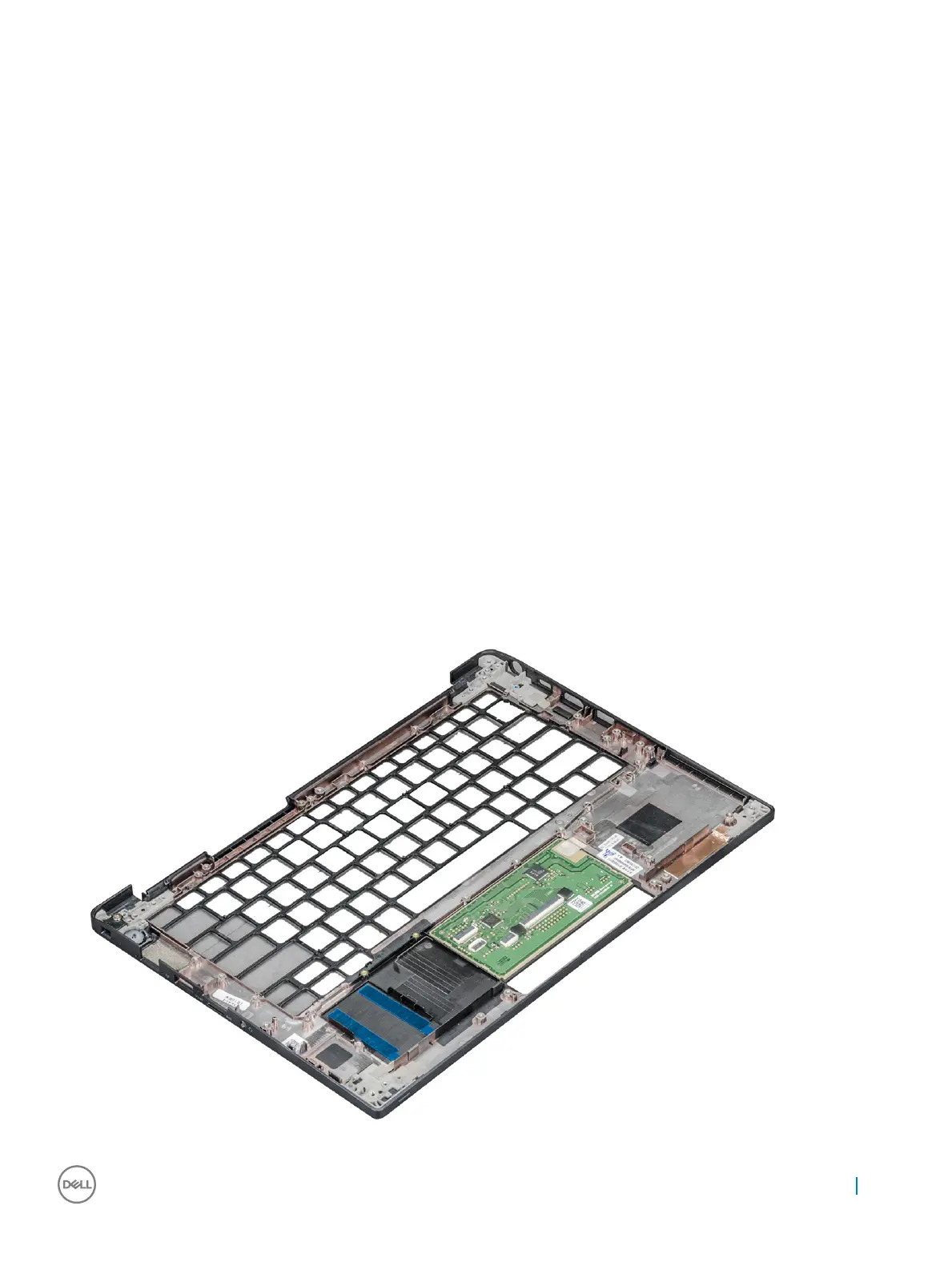

Palm rest
Replacing palm rest
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a base cover
b battery
c memory module
d PCIe SSD
e WLAN card
f WWAN card
g heat sink assembly
h system board
i power connector port
j coin cell battery
k speaker
Removing and installing components
41
