About this task

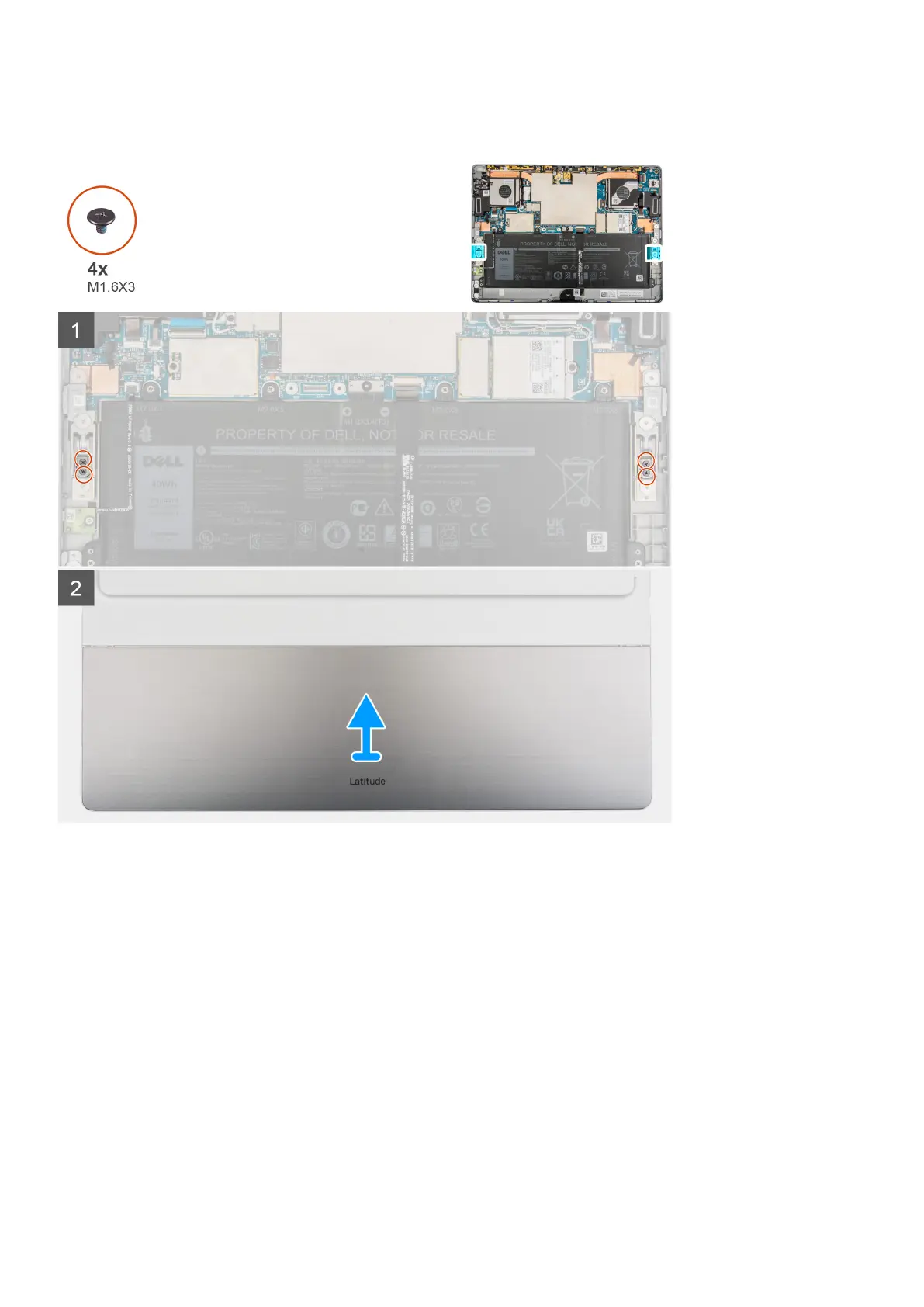

The following images indicate the location of the kick stand and provide a visual representation of the removal procedure.
Steps
1. Remove the four (M1.6x3) screws that secure the kick stand to the kick stand hinges.
2. Flip the system over and lift the kick stand away from the system.
Installing the kick stand
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the kick stand and provide a visual representation of the installation procedure.
Removing and installing components
37
