Steps
1. Disconnect the fan cable from the system board.
2. Remove the two (M2x2.5) screws on the fan case and the four (M2x2.5) screws (in reverse order, 4->3->2->1) that secure
the heatsink to the computer.
3. Lift the heatsink assembly from the computer.
Installing the heatsink assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

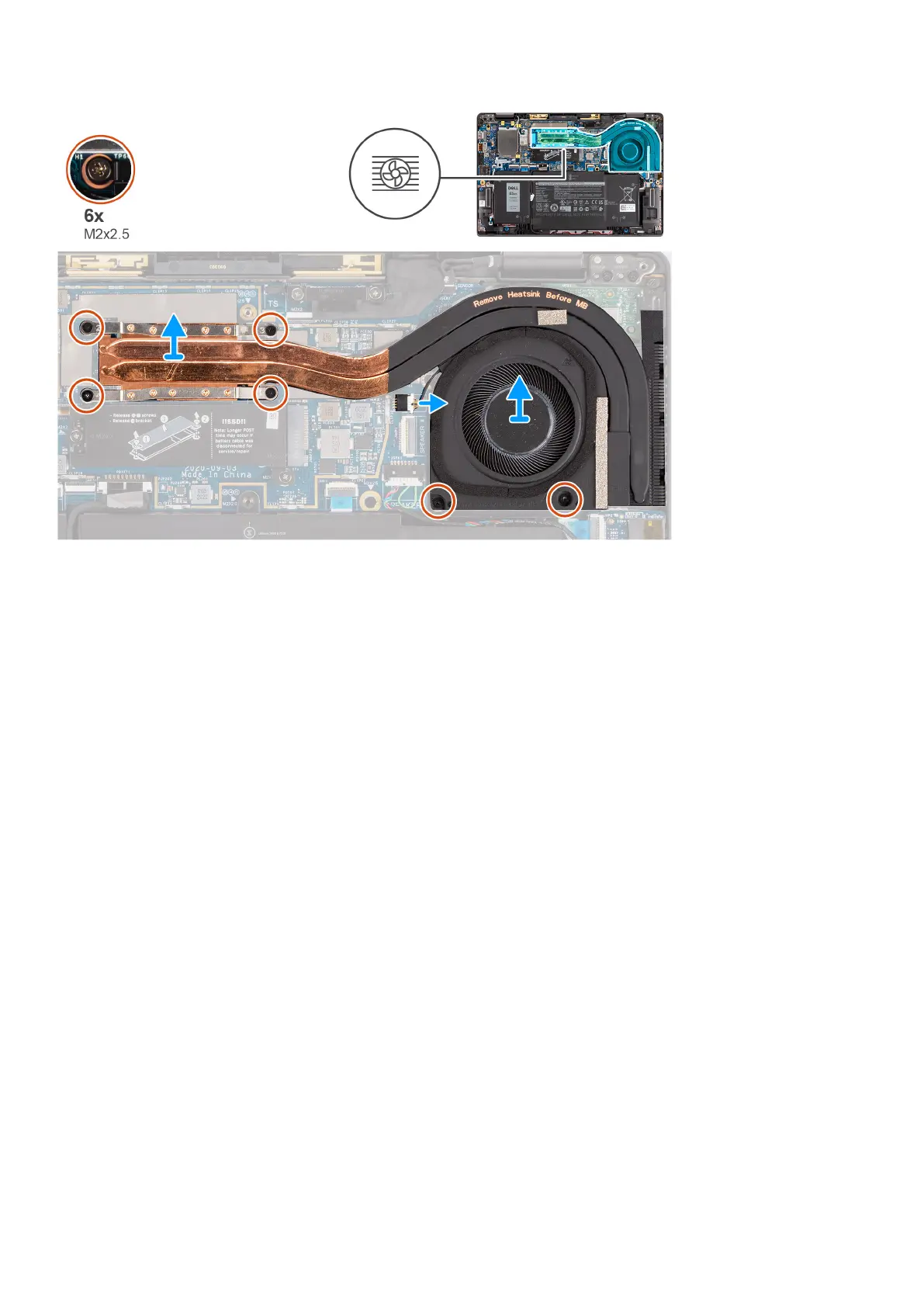

The following image indicates the location of the heatsink assembly and provides a visual representation of the installation
procedure.
Removing and installing components
31
