2. Remove the microSD card.
3. Remove the SIM card.
4. Remove the base cover.
5. Remove the solid-state drive.
6. Remove the WWAN card.
7. Remove the battery.
8. Remove the heatsink assembly.
9. Remove the system board.
About this task

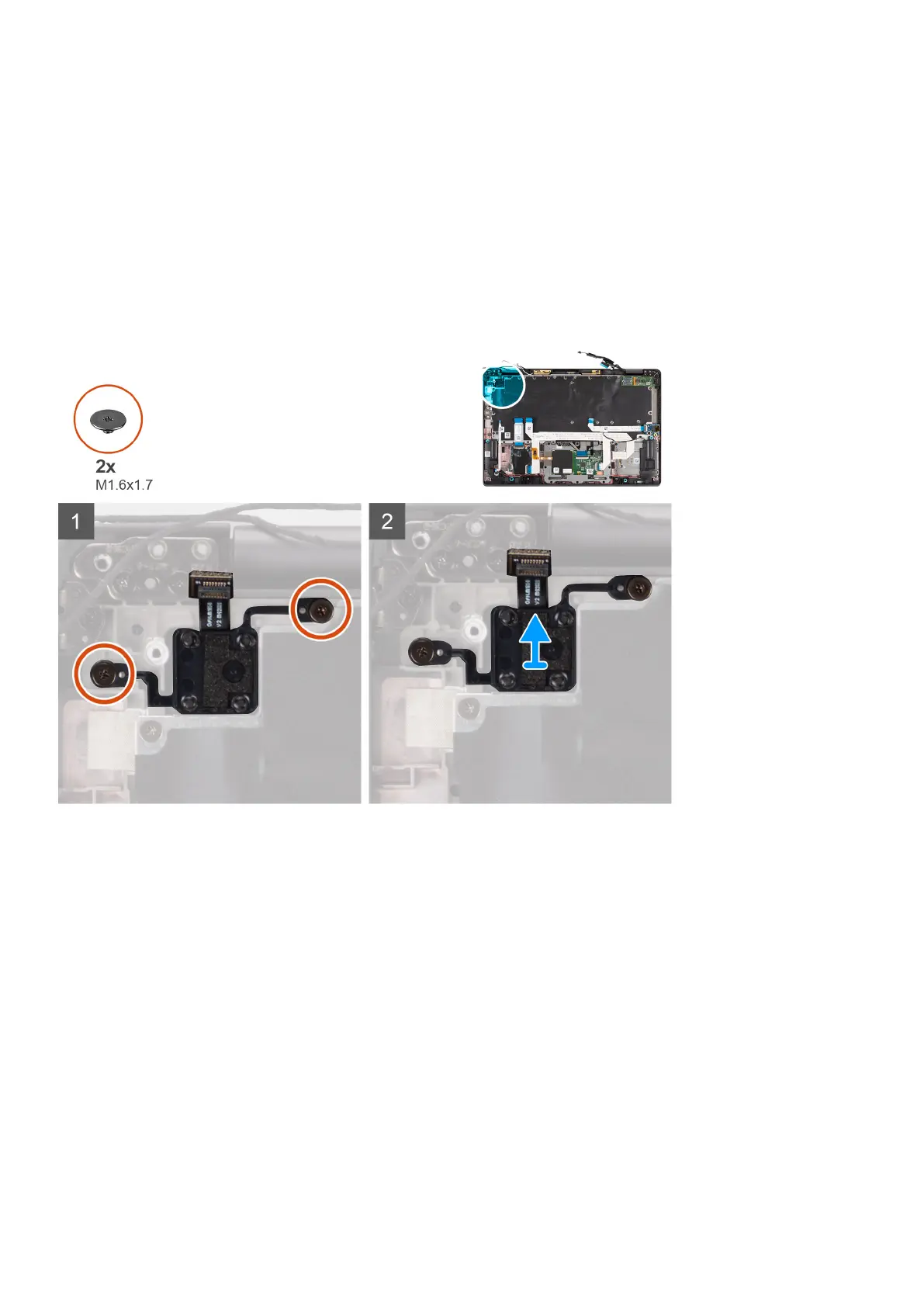

The following images indicate the location of the power button with fingerprint reader and provide a visual representation of the
removal procedure.
Steps
1. Remove the two (M1.6x1.7) screws securing the power button with fingerprint reader to the computer.
2. Lift and remove the power button with fingerprint reader from the computer.
Installing the power button with fingerprint reader
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the power button with fingerprint reader and provides a visual representation of
the installation procedure.
