Installing the system board

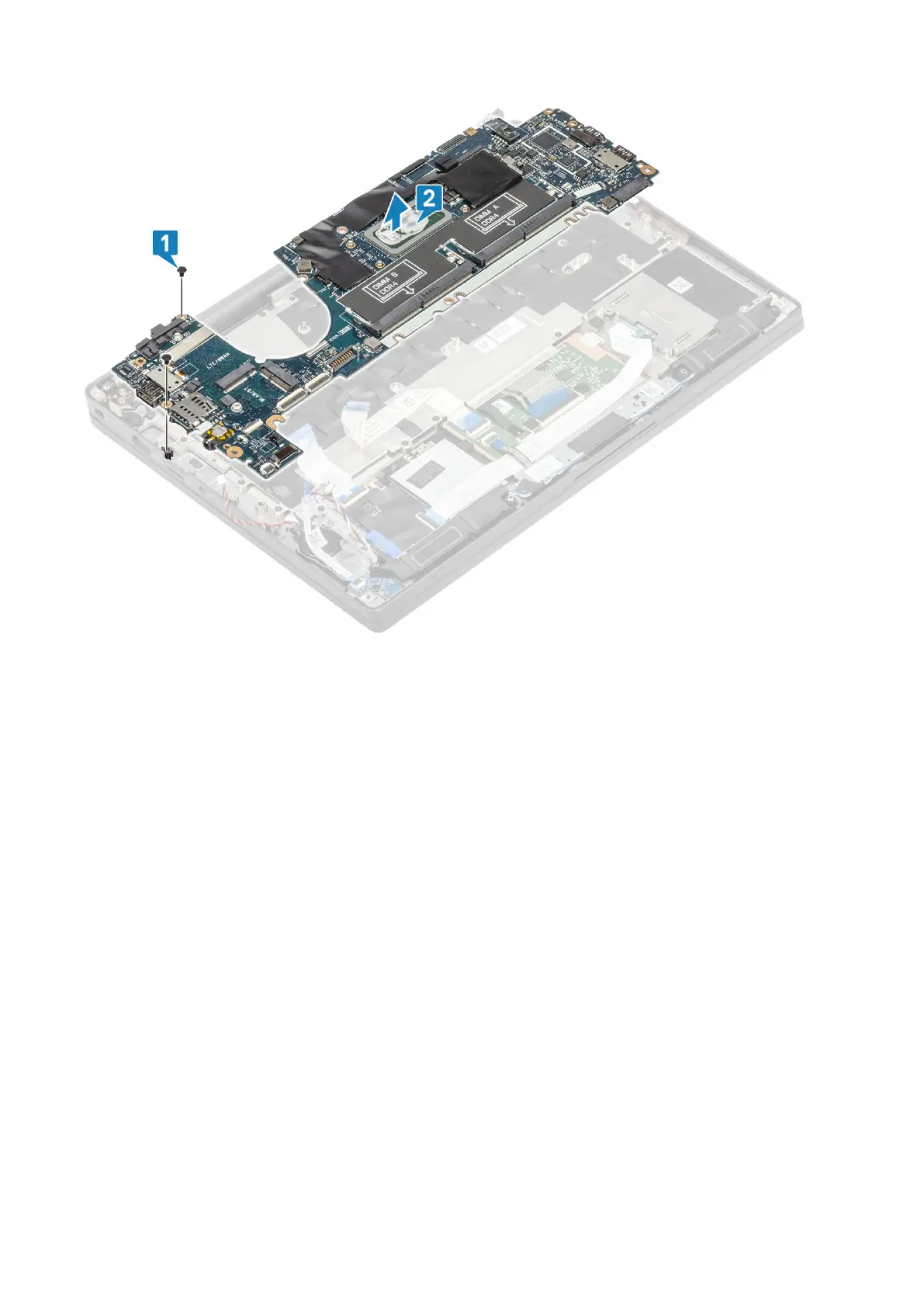

1. Align and place the system board in the palmrest assembly [1]
2. Replace the two (M2x4) screws on the system board securing it to the palmrest assembly [2].
Removing and installing components
75
