c. memory module
d. PCIe SSD
e. WLAN card
f. WWAN card
g. heat sink assembly
h. system board

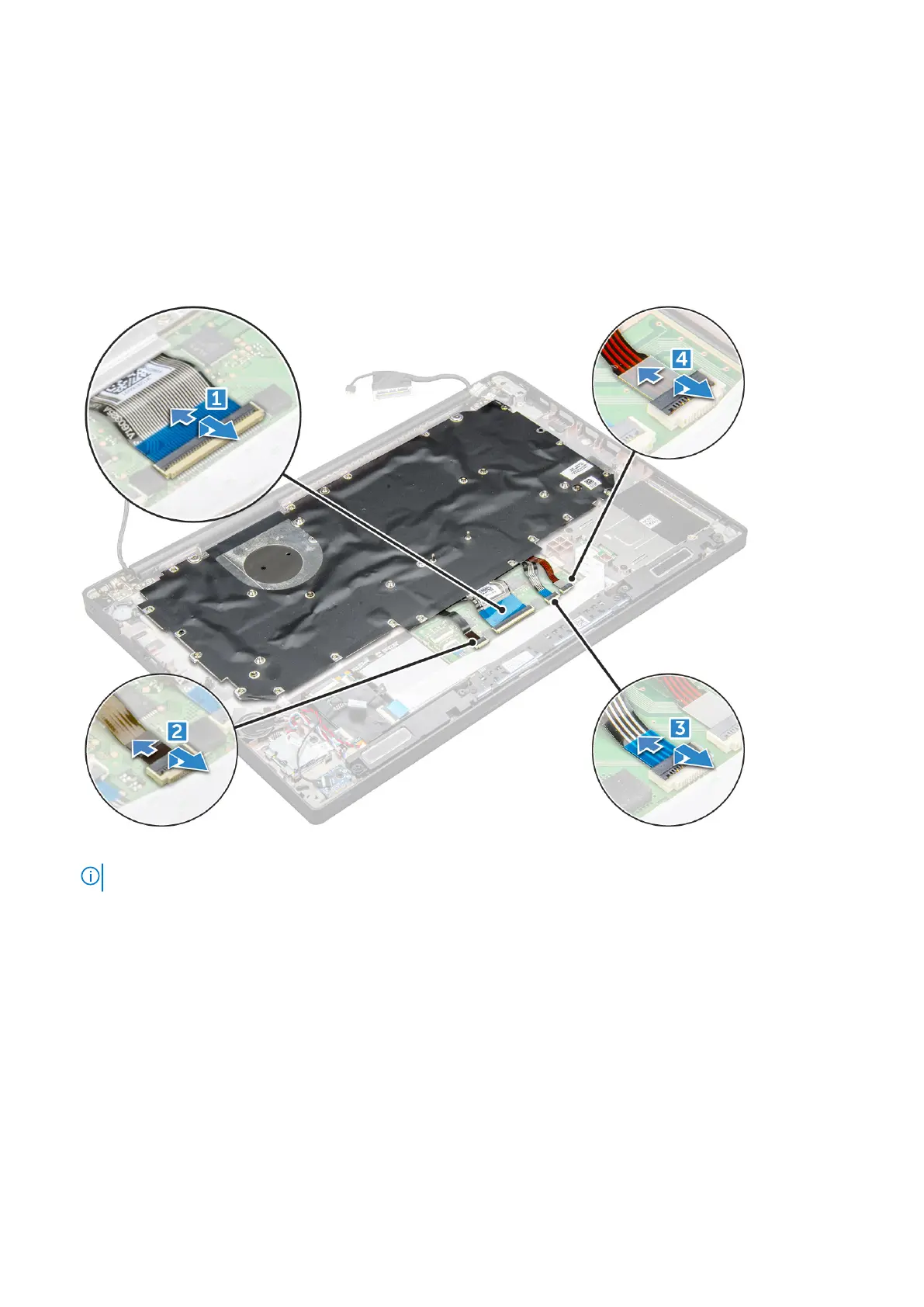

3. Disconnect the cables from the palmrest end:
a. keyboard cable [1]
b. keyboard backlight cable [2]
c. Touchpad and USH board cables [3,4]
4. To remove the keyboard assembly:
NOTE: To identify the screws, see screw list
a. Remove the M2.0 x 2.5 screws that secure the keyboard [1].
b. Lift the keyboard assembly from the chassis [2].
46
Disassembly and reassembly
