About this task

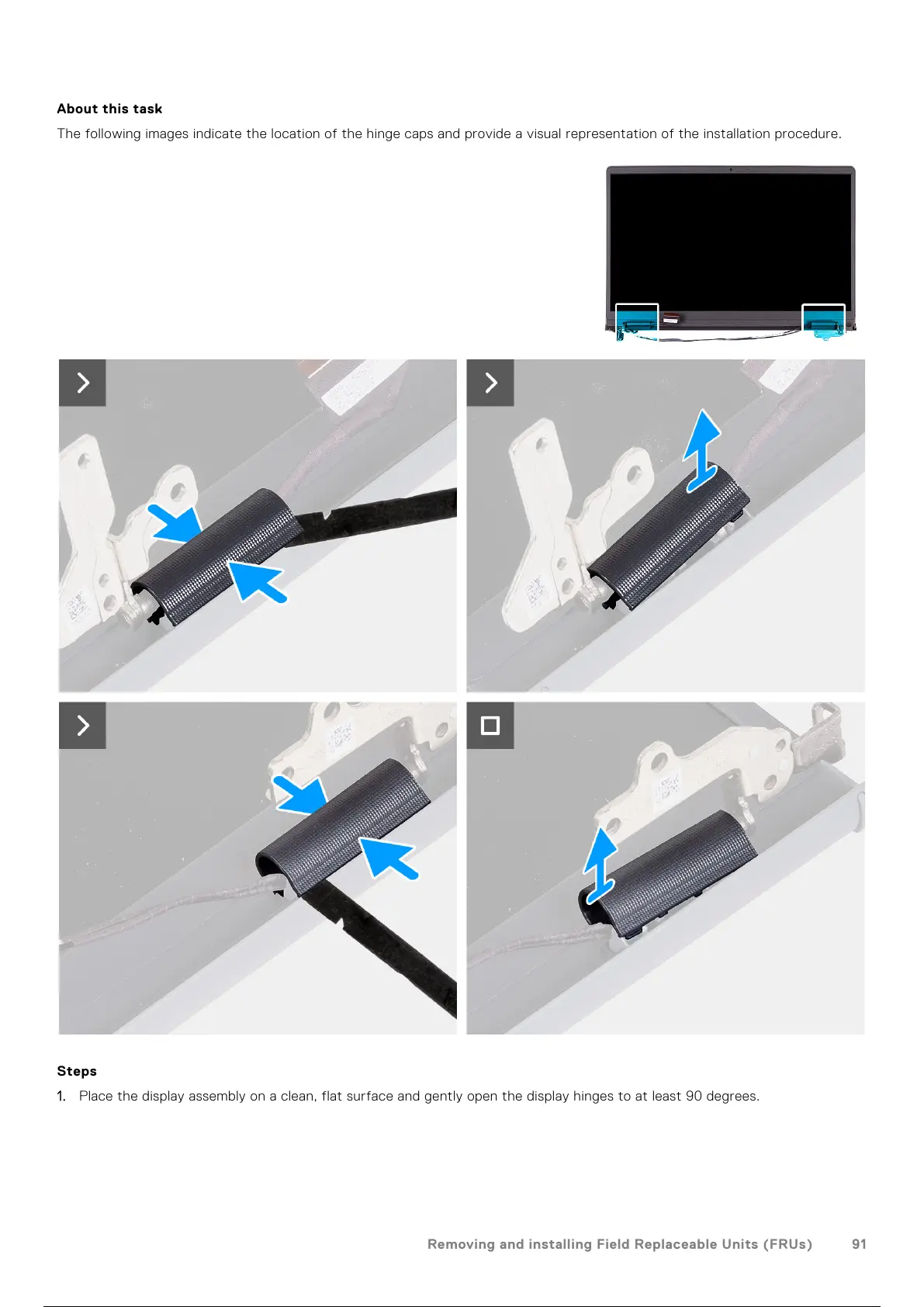

The following images indicate the location of the hinge caps and provide a visual representation of the installation procedure.
Steps
1. Place the display assembly on a clean, flat surface and gently open the display hinges to at least 90 degrees.
Removing and installing Field Replaceable Units (FRUs)
91
