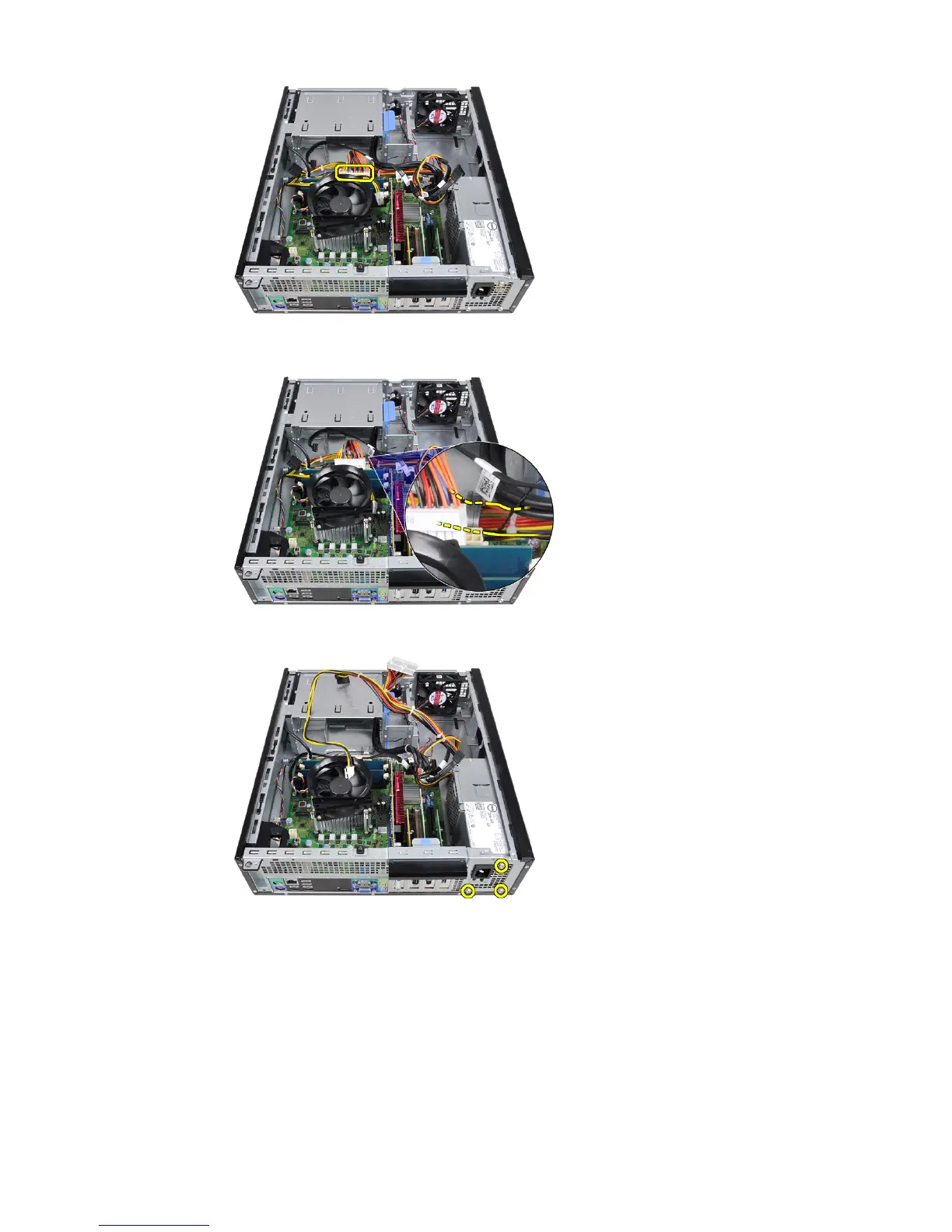

7. Unthread the 24–pin power cable from the chassis clip.

8. Remove the screws that secure the power supply to the back of the computer.

9. Push in on the blue release tab beside the power supply, and slide the power

towards the front of the computer.

50
