Dell OptiPlex XE3 Small Form Factor Service Manual

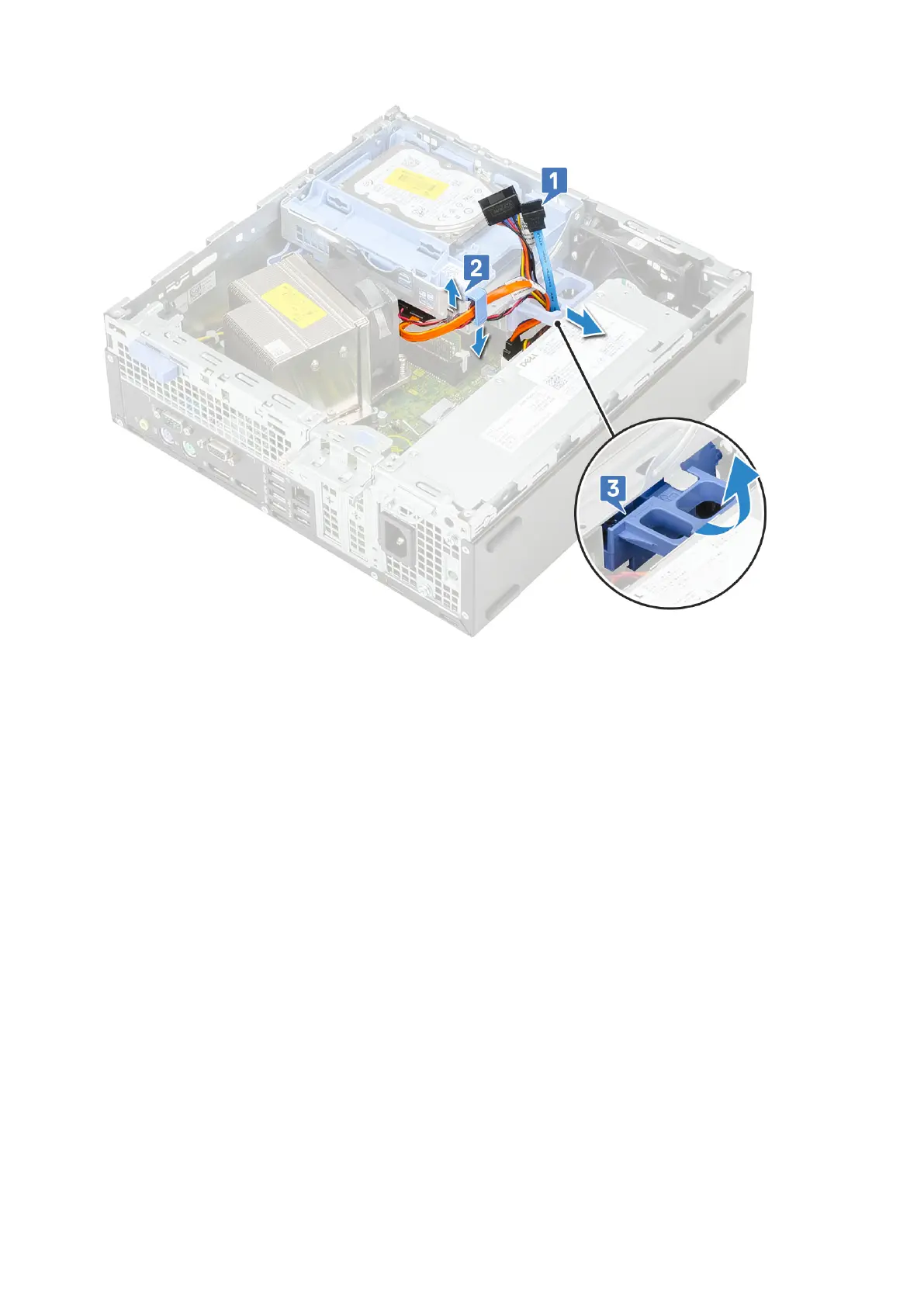

4. To remove the hard drive and optical drive module:
a) Disconnect the optical drive data cable and optical drive power cable from the connectors on the optical drive [1, 2].
b) Slide and lift the hard drive and optical drive module from the system [3].
Removing and Installing components
31
