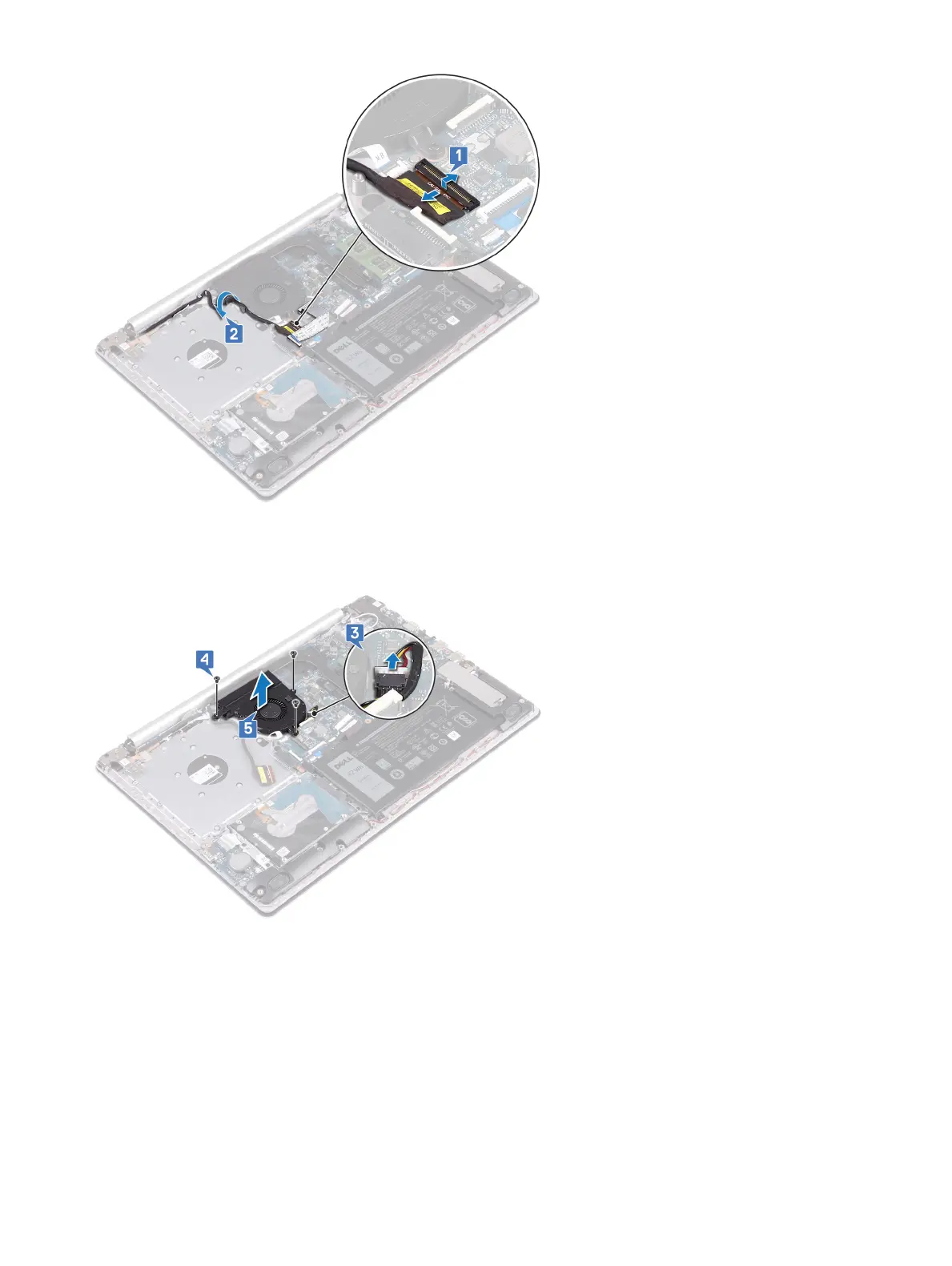

3 Disconnect the fan cable from the system board.

4 Remove the three screws (M2.5x5) that secure the fan to the palm rest and keyboard board assembly.

5 Lift the fan o the palm rest and keyboard board assembly.

Removing the fan
