P780

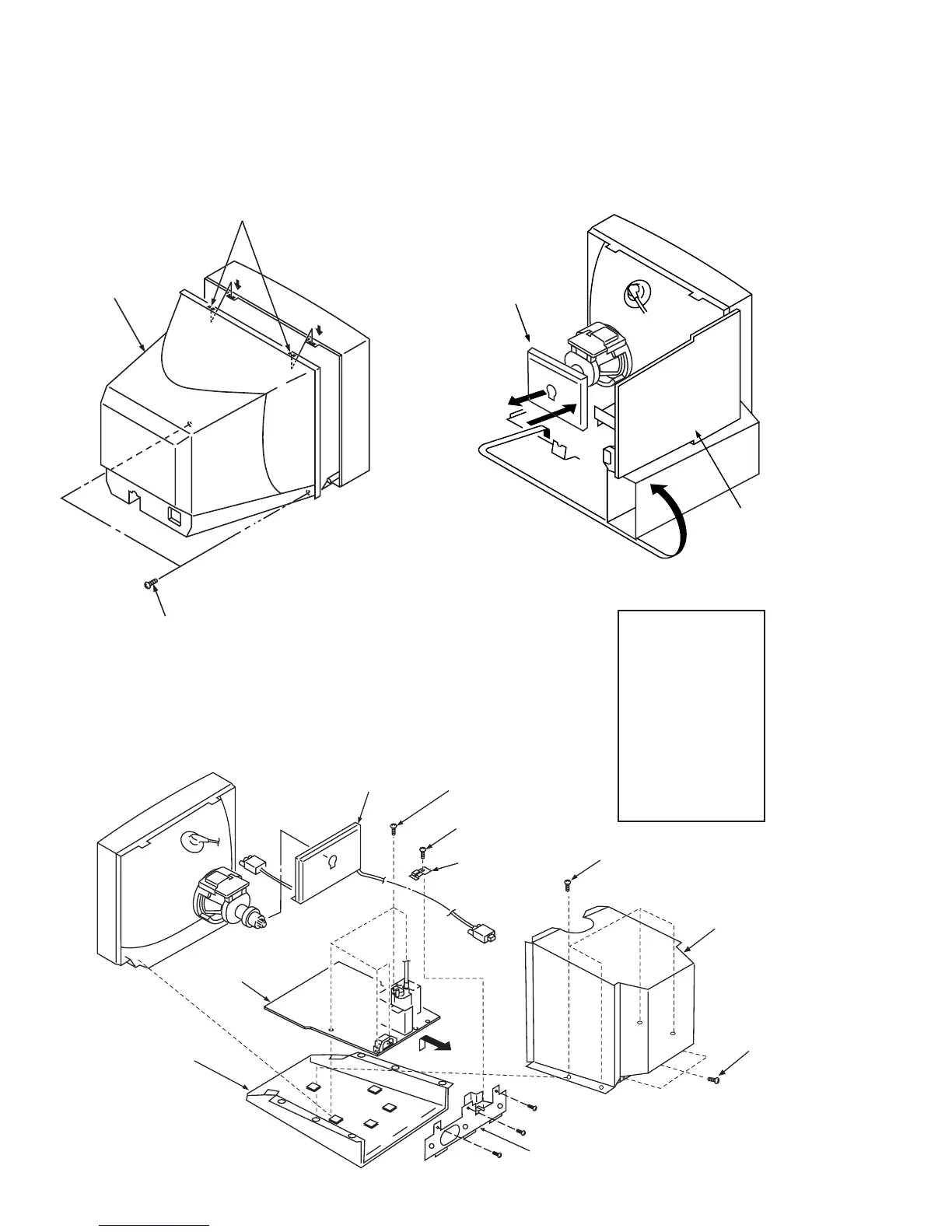

2-3. A and D BOARD REMOVAL
2-1. CABINET REMOVAL
2-2. SERVICE POSITION
SECTION 2
DISASSEMBLY
1 When the D-board is
placed in service
position, the Safety Earth
Wire (green and yellow
wire) is disconnected.
2 After service is
completed and the
D-board reinstalled, the
Safety Earth Wire must
be reattached to the
chassis with the proper
screw. This must be
confirmed before any
subsequent procedures
are attempted.
A board
D board
Cabinet
Two screws
(BVTP 4 x 16)
Two claws
PUSH
PUSH
EMI Shield
Four screws
(BVTP) 3 x 8)
Three screws
(BVTP) 3 x 8)
Cable stopper
Five screws
(BVTP 3 x 12)
D board
One screw
(BVTT 4 x 8)
Holder
A board
Chassis base
