66
Broadcast Rate Threshold (70-285000)
— The rate of Broadcast threshold ranges from 70-285,000
packets per second. The default value is zero.
Modifying PowerConnect 2708 Storm Control Port Parameters
1
Open the
Storm Control
page.
2
Enter the fields.
3
Click
Apply Changes
.
The Storm Control port parameters are saved to the PowerConnect 2708 switch.
Configuring Storm Control on the PowerConnect 2716/2724
The PowerConnect 2716 and PowerConnect 2724 switches measure the rate of incoming
Broadcast/Multicast packets rate separately,
per port (the same rate is configured globally, per
device)
, and discards excess packets when the rate exceeds the defined threshold value.
The PowerConnect 2716 and PowerConnect 2724 switch users can do the following:
• Set the maximum number of Broadcast/Multicast frames allowed on each port, in terms of
number of packets per second.
• Enable or disable packet storm control, on a
per-port
basis.
To open the page, click
Storm Control
in the tree view.

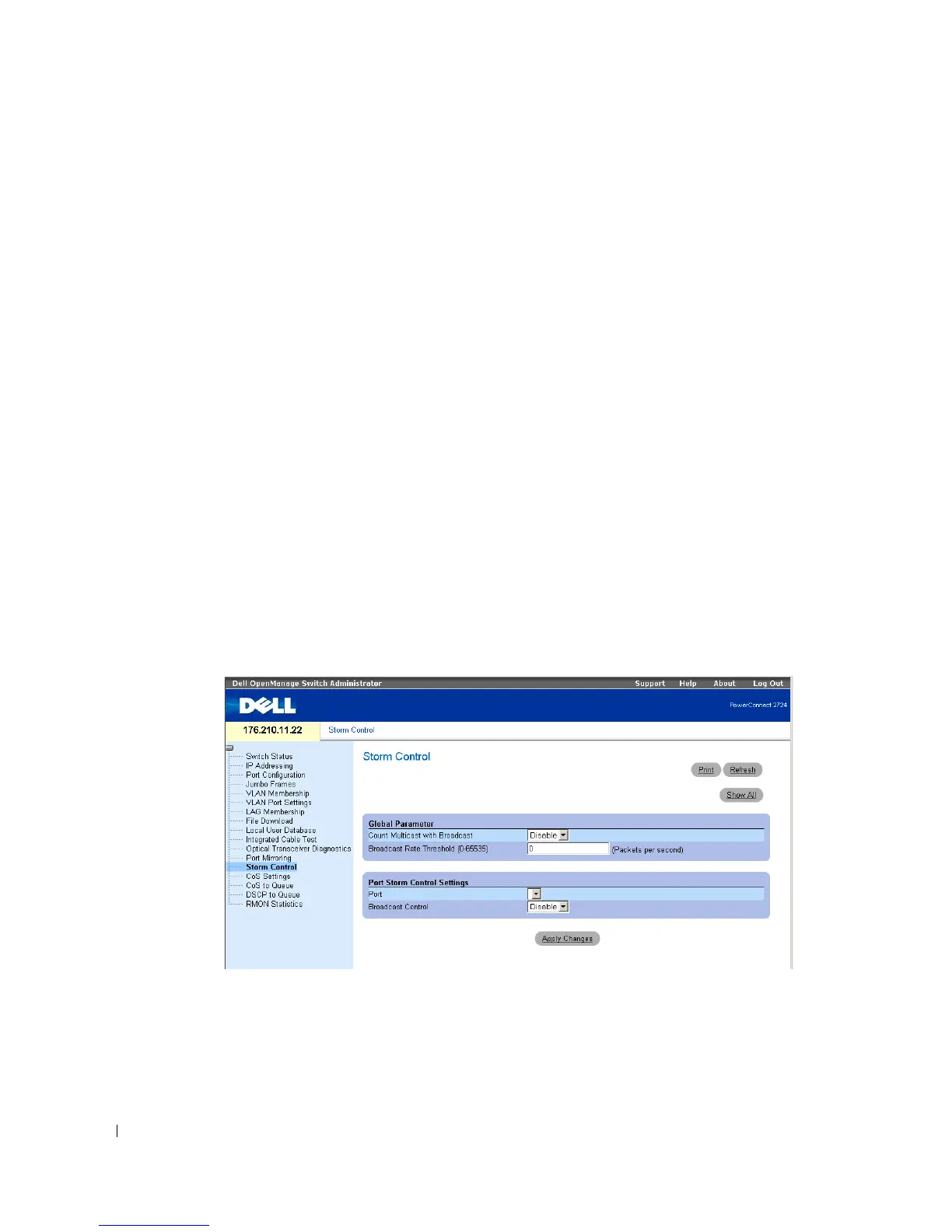

Figure 6-17. Storm Control (PowerConnect 2716/2724 Switch Configuration)
Count Multicast with Broadcast
— Enables counts Broadcast and Multicast traffic.
Disable
counts only Broadcast traffic. The count definition is global for the whole device.
Broadcast Rate Threshold (0-65535)
— The rate of Broadcast threshold ranges from 0-65,535
packets per second. The default value is 1000.
