374 Configuring Switching Information
4. Enter the VLAN ID to which the IP address and subnet mask are assigned.
5. Click Apply Changes .
The listed VLAN and IP Subnet are now bound, and the device is updated.
Displaying the IP Subnet - VLAN Bind Table
1. Open the Bind IP Subnet to VLAN page.
2. Click Show All .
3. The IP Subnet - VLAN Bind Table displays.

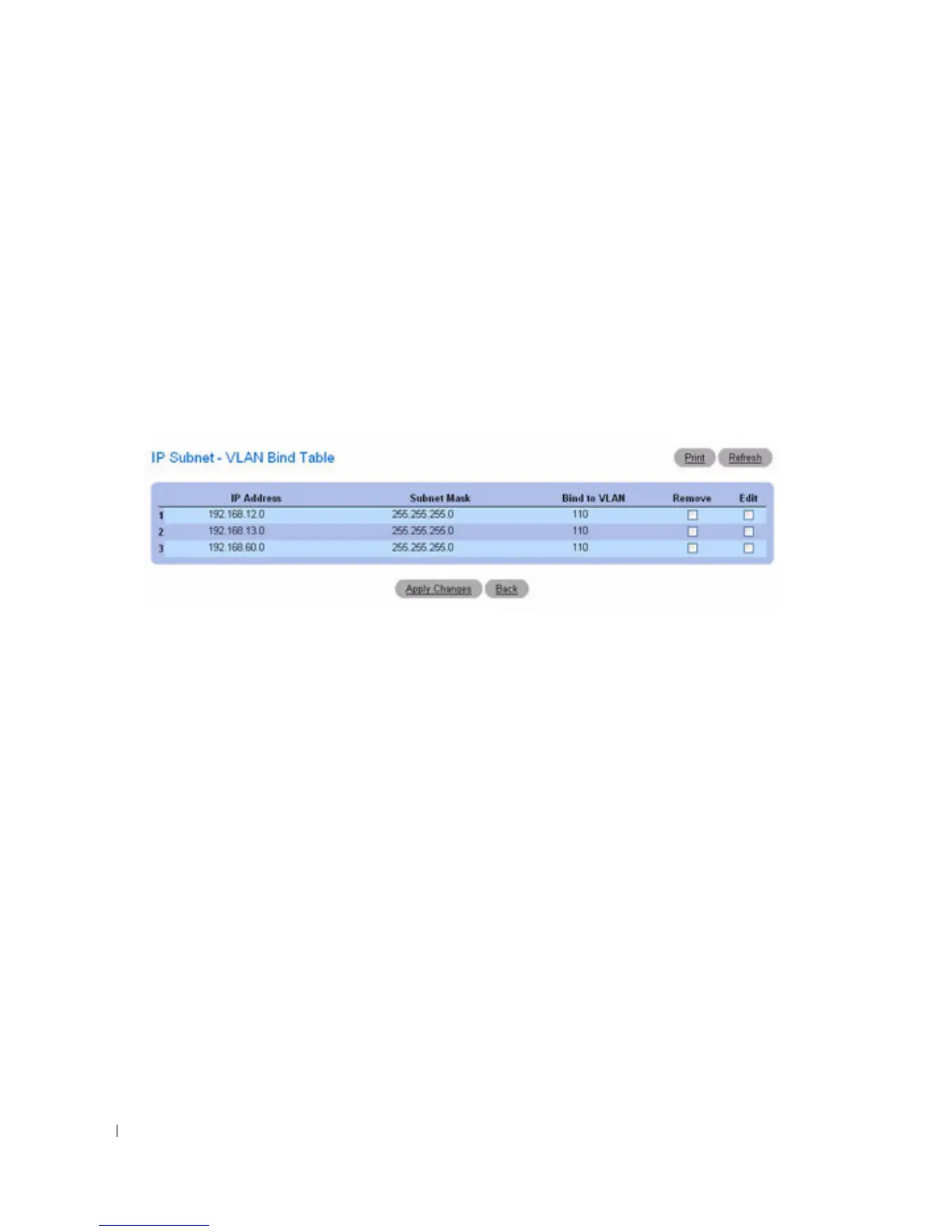

Figure 7-61. IP Subnet - VLAN Bind Table
Modifying the VLAN Bound to Multiple IP Addresses
1. Open the Bind IP Subnet to VLAN page.
2. Click Show All .
The
IP Subnet - VLAN Bind Table displays.
3. Click Edit for each entry to modify.
4. Edit the fields as needed.
5. Click Apply Changes .
The Bind to VLAN settings are modified, and the device is updated.
Removing a VLAN - IP Subnet Entry
1. Open the Bind IP Subnet to VLAN page.
2. Click Show All .
The
IP Subnet - VLAN Bind Table displays.
3. Check Remove for each entry to remove.
4. Click Apply Changes .
The entry/entries are removed, and the device is updated.
